• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Number of Holes: 5
• Surface: Coated
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Centering Diameter [mm]: 68
• Height [mm]: 43.9
• Number of Holes: 5
• Minimum thickness [mm]: 23.4
• Bolt Hole Circle Ø [mm]: 114
• Name: PIDURIKETAS
• Manufacturer: MAX

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Test Mark: ECE-R90
• Height [mm]: 46.5
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 22
• Outer Diameter [mm]: 275
• Number of Holes: 5
• Centering Diameter [mm]: 55
• Surface: painted
• Manufacturer: METELLI UKL.HAMULCOWY

• Brake Disc Thickness [mm]: 24
• Rim Hole Number: 5
• Number of mounting bores: 2
• Thickness [mm]: 44
• Outer Diameter [mm]: 280
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 22
• Centering Diameter [mm]: 68
• Weight [kg]: 6.85
• Observe service information:
• Manufacturer: FEBI BILSTEIN
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• Minimum thickness [mm]: 23.4
• Brake Disc Type: Vented
• Bore Diameter [mm]: 15.8
• Brake Disc Thickness [mm]: 26
• Bolt Hole Circle Ø [mm]: 114.3
• Number of Holes: 5
• Inner Diameter [mm]: 147.7
• Height [mm]: 44
• Centering Diameter [mm]: 68
• Outer Diameter [mm]: 296
• Manufacturer: DENCKERMANN ZAWIESZENIE
• Quantity per packing unit: 2

• Brake Disc Thickness [mm]: 24
• Rim Hole Number: 5
• Number of mounting bores: 2
• Thickness [mm]: 44
• Outer Diameter [mm]: 280
• Bolt Hole Circle Ø [mm]: 114
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 22
• Centering Diameter [mm]: 68
• Weight [kg]: 6.85
• Observe service information:
• Manufacturer: BLUEPRINT
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 24
• Outer Diameter [mm]: 280
• Weight [kg]: 6.63
• Height [mm]: 44
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 68
• Surface: Coated
• Minimum thickness [mm]: 21.8
• Bore Diameter up to [mm]: 16
• Name: ALT 127961FCAL
• Manufacturer: ALTE AUTOMOTIVE

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Surface: Coated
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Centering Diameter [mm]: 68
• Height [mm]: 43.9
• Minimum thickness [mm]: 23.4
• Rim Hole Number: 5
• Number of mounting bores: 2
• Supplementary Article/Info 2: without integrated wheel bearing
• Weight [kg]: 8.14
• Manufacturer: VALEO TARCZE

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Height [mm]: 43.9
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 26
• Minimum thickness [mm]: 23.4
• Number of bores: 2
• Outer Diameter [mm]: 296
• Number of Holes: 5
• Centering Diameter [mm]: 68
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Coated
• Name: SK VKBD80018V2
• Manufacturer: SKF

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Number of Holes: 5
• Test Mark: E1 90R-02C0544/1768
• Surface: Oiled
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Minimum thickness [mm]: 23.4
• Centering Diameter [mm]: 68
• Height [mm]: 43.9
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG4264

• Brake Disc Thickness [mm]: 26
• Rim Hole Number: 5
• Number of mounting bores: 2
• Thickness [mm]: 44
• Outer Diameter [mm]: 296
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 24
• Centering Diameter [mm]: 68
• Weight [kg]: 8.08
• Observe service information:
• Manufacturer: FEBI BILSTEIN
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Quantity per packing unit: 2
• Installatsiooni pool: Esisild
• Piduriketta liik: õhutusega
• Pidurikettajämedus [mm]: 26
• Välisläbimõõt [mm]: 296
• Kõrgus (mm): 43,9
• Aukude arv: 5
• Tsentri läbimõõt (mm): 68
• Ava Ø (mm): 114,3
• Pealispind: värvitud
• Kaal (kg): 15,5
• Miinimumjämedus (mm): 23,4
• Manufacturer: TOMEX

• Brake Disc Thickness [mm]: 26
• Rim Hole Number: 5
• Number of mounting bores: 2
• Thickness [mm]: 44
• Outer Diameter [mm]: 296
• Bolt Hole Circle Ø [mm]: 114
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 24
• Centering Diameter [mm]: 68
• Weight [kg]: 8.08
• Observe service information:
• Manufacturer: BLUEPRINT
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Brake Disc Thickness [mm]: 26
• Rim Hole Number: 5
• Number of mounting bores: 2
• Thickness [mm]: 44
• Outer Diameter [mm]: 296
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 24
• Centering Diameter [mm]: 68
• Weight [kg]: 8.08
• Name: SW 33 10 0129
• Manufacturer: SWAG

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

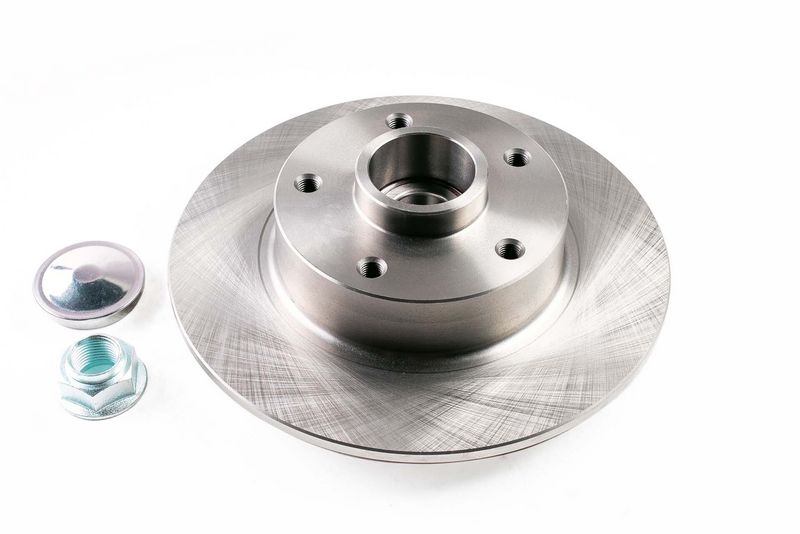

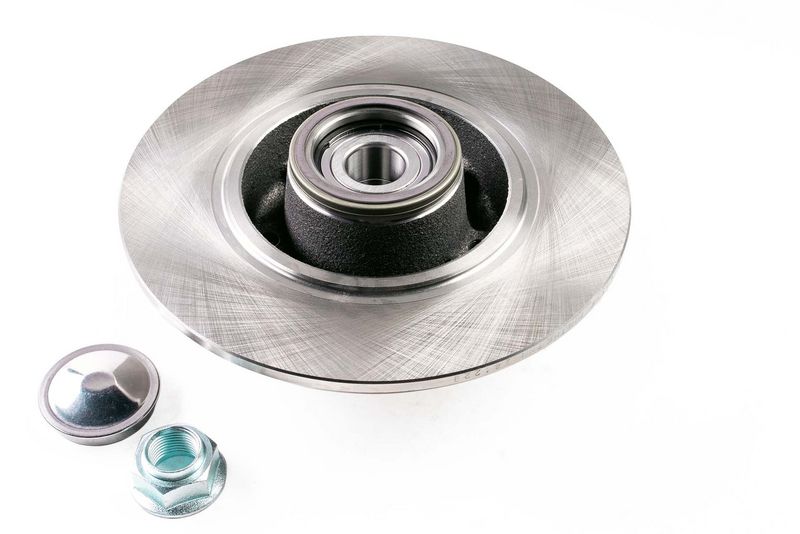

• Brake Disc Type: solid
• Outer Diameter [mm]: 260
• Brake Disc Thickness [mm]: 8
• Fitting Position: Rear Axle
• Number of Holes: 5
• Centering Diameter [mm]: 52.5
• Height [mm]: 87.9
• Stub Axle Diameter [mm]: 30
• Supplementary Article/Info 2: with ABS sensor ring, with wheel bearing
• Minimum thickness [mm]: 7
• Bolt Hole Circle Ø [mm]: 114
• Name: PIDURIKETAS
• Manufacturer: MAX
• Lisainfo: laager+abs
• Additional information: laager+abs

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Minimum thickness [mm]: 23.4
• Height [mm]: 43.9
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Centering Diameter [mm]: 68
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Coated
• Hub Diameter [mm]: 159
• Weight [kg]: 7.82
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Engine Code: F9Q 870
• Fitting Position: Front Axle
• Välisläbimõõt [mm]: 296
• Pidurikettajämedus [mm]: 26
• Miinimumjämedus (mm): 23,4
• Kõrgus (mm): 43,9
• Ava Ø (mm): 114,3
• Piduriketta liik: õhutusega
• Tsentri läbimõõt (mm): 68
• Aukude arv: 5
• Pealispind: õlitatud
• Töötlus: legeeritud
• Piirangutega toode/piirangu info 2: koos kruvidega
• täidab ECE-normi: ECE-R90
• Ava läbimõõt kuni [mm]: 15,7
• Name: PIDURIKETAS
• Manufacturer: BOS
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Outer Diameter [mm]: 260
• Brake Disc Thickness [mm]: 8
• Required quantity: 2
• Supplementary Article/Info 2: with wheel bearing, with ABS sensor ring
• Replace in pairs only:
• Height [mm]: 86.2
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 52.3
• Number of Holes: 5
• Test Mark: ECE R90
• Assy./disassy. by qualified personnel required!:
• Manufacturer: ABAKUS
• Quantity per packing unit: 2

General Information: The following information is for general and informational purposes only and does not constitute warranty terms. Warranty terms and conditions are available from our dealers and in our general terms and conditions of sale. Abakus spare/repair parts are intended only for vehicle repairs in order to restore their original functionality. Abakus spare/repair parts are used or sold to users only for the purpose of repairing vehicles to restore their original look and functionality and are not original/genuine/OE/OEM/OES replacement parts. These items do not originate from the vehicle manufacturer and may be the subject of a design not owned by Abakus and the manufacturer of this spare part. They may only be used for repairs to restore the intended vehicle to its original appearance. Our products are delivered without instruction of installation. Installation of our product may only be carried out by trained specialist technicians in specific car repairs. Products supplied by us are exclusively intended for proper and appropriate use. The warranty may become invalid in the event of: improper installation or repair, unsuitable application or use, installation or repair made outside specialist car workshops. Warranty claims are lost if the vehicle is modified and used for motor sports, tuning or similar events (except our tuning parts which are described in TecDoc and on our price list). Warranty application should include complete documentation among others: chassis no., first registration, vehicle mileage, information about LPG installation, fault memory log, pictures, our QC (quality check) code, installation invoice, contact details of the car repair workshop performing the replacement or repair. Warranty application are available in our Client Panel system. Complaints may require supplementing data such as error memory logs. Incomplete documentation may result in rejection of the claim. Any damage caused during transport is not considered quality damage and will be considered on an individual basis. The product is intended for use within the performance limits specified by the manufacturer and should only be used by qualified personnel who have been trained to operate this product. Before each use, the product should be checked for damage or fixing of its parts and not used if any defects or loose parts are found. Failure to follow the manufacturer's guidelines could result in potential product damage or even injury. Wear appropriate protective clothing if necessary when working with the product.

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Number of Holes: 5
• Test Mark: E1 90R-02C0543/2054
• Supplementary Article/Info 2: with wheel bearing, with ABS sensor ring
• Surface: Oiled
• Outer Diameter [mm]: 260
• Brake Disc Thickness [mm]: 8
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 30
• Height [mm]: 86.2
• Name: DE BG9137RS
• Manufacturer: DELPHI
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Brake Disc Type: Externally Vented
• Minimum thickness [mm]: 23.4
• Height [mm]: 43.9
• Bolt Hole Circle Ø [mm]: 114
• Centering Diameter [mm]: 68
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Surface: painted
• Number of Holes: 5
• Name: PIDURIKETAS
• Manufacturer: QUARO

• Vehicle Equipment: for vehicles without electric parking brake
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Outer Diameter [mm]: 260
• Brake Disc Thickness [mm]: 8
• Number of Holes: 5
• Supplementary Article/Info 2: with wheel bearing kit, with ABS sensor ring
• Surface: Coated

• Fitting Position: Rear Axle
• Outer Diameter [mm]: 260
• Height [mm]: 86.2
• Brake Disc Thickness [mm]: 8
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 52.2
• Bolt Hole Circle Ø [mm]: 114.3
• Wheel Bolt Bore Diameter [mm]: 12
• Number of Holes: 5
• Brake Disc Type: solid
• Supplementary Article/Info 2: without ABS sensor ring, without wheel bearing
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY

• Fitting Position: Rear Axle
• Minimum thickness [mm]: 7
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 8
• Bolt Hole Circle Ø [mm]: 114.3
• Number of Holes: 5
• Support plate diameter [mm]: 30
• Thread Size: M12x1,5
• Inner Diameter [mm]: 62
• Height [mm]: 86.2
• Centering Diameter [mm]: 52.3
• Outer Diameter [mm]: 260
• Manufacturer: DENCKERMANN ZAWIESZENIE
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 26
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 44
• Centering Diameter [mm]: 68
• Outer Diameter [mm]: 296
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 23.4
• Tightening Torque [Nm]: 110
• Manufacturer: BREMBO
• Name: BR 09.B353.11
• Quality class: Q

• Fitting Position: Front Axle
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Brake Disc Type: Externally Vented
• Minimum thickness [mm]: 23.4
• Height [mm]: 43.9
• Bolt Hole Circle Ø [mm]: 114
• Centering Diameter [mm]: 68
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Surface: painted
• Machining: High-carbon
• Number of Holes: 5
• Name: Piduriketas
• Manufacturer: QUARO

• Vehicle Equipment: for vehicles with electric parking brake
• Outer Diameter [mm]: 274
• Brake Disc Thickness [mm]: 11
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Height [mm]: 88.1
• Centering Diameter [mm]: 30
• Stub Axle Diameter [mm]: 30
• Number of Holes: 5
• Minimum thickness [mm]: 9.5
• Bolt Hole Circle Ø [mm]: 114
• Name: PIDURIKETAS
• Manufacturer: MAX
• Lisainfo: 19-2243
• Additional information: 19-2243

Supplementary Article/Info 2: with wheel bearing, with integrated magnetic sensor ring

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: Externally Vented
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Height [mm]: 43.9
• Minimum thickness [mm]: 23.4
• Surface: Coated
• Inner Diameter [mm]: 148
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 68
• Hole Arrangement/Number: 05/07
• Wheel Bolt Bore Diameter [mm]: 15.9
• Packaging length [cm]: 30.8
• Packaging width [cm]: 30.8
• Packaging height [cm]: 12.7
• Weight [kg]: 7.8
• Name: PIDURIKETAS
• Manufacturer: TEX
• Quality class: Q

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 44
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 68
• Number of Holes: 5
• Quantity Unit: Set
• Surface: Coated
• Version: JC
• Weight [kg]: 15.49
• Minimum thickness [mm]: 23.4
• Tightening Torque [Nm]: 110
• Packing Type: Carton
• Packaging length [cm]: 30.5
• Packaging width [cm]: 30.5
• Packaging height [cm]: 11
• Manufacturer: JURID

• Brake Disc Thickness [mm]: 8
• Rim Hole Number: 5
• Thickness [mm]: 86.2
• Outer Diameter [mm]: 260
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Oiled
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 52.3
• Weight [kg]: 6.96
• Supplementary Article/Info 2: with ABS sensor ring, with grease cap
• Observe service information:
• Manufacturer: FEBI

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Vehicle Equipment: for vehicles without electric parking brake
• Quantity per packing unit: 2
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 8
• Outer Diameter [mm]: 260
• Height [mm]: 87.9
• Number of Holes: 5
• Centering Diameter [mm]: 52.5
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: painted
• Supplementary Article/Info 2: with wheel bearing, with ABS sensor ring
• Weight [kg]: 7.1
• Minimum thickness [mm]: 7
• Manufacturer: TOMEX C

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 296
• Brake Disc Thickness [mm]: 26
• Minimum thickness [mm]: 23.4
• Brake Disc Type: Vented
• Machining: Alloyed/High-carbon
• Surface: Coated
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• MAPP code available:
• Bolt Hole Circle Ø [mm]: 114.3
• Height [mm]: 44
• Centering Diameter [mm]: 68
• Inner Diameter [mm]: 147.7
• Bore Diameter [mm]: 15.8
• Test Mark: E1 90R-02C0118/0072
• Name: PIDURIKETAS
• Manufacturer: ATE
• Quality class: Q

• Brake Disc Thickness [mm]: 8
• Rim Hole Number: 5
• Thickness [mm]: 86
• Outer Diameter [mm]: 260
• Bolt Hole Circle Ø [mm]: 114
• Surface: Oiled
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 7
• Centering Diameter [mm]: 52.3
• Weight [kg]: 6.96
• Supplementary Article/Info 2: with grease cap, with ABS sensor ring
• Observe service information:
• Manufacturer: BLUEPRINT
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 8
• Outer Diameter [mm]: 260
• Height [mm]: 86.2
• Surface: Coated
• Hole Spacing 1/Hole Spacing 2: 5x114.3
• Thread Size: M12x1.5
• Minimum thickness [mm]: 7
• Hole Arrangement/Number: 5/5
• Inner Diameter [mm]: 30
• Manufacturer: OPTIMAL
• Quantity per packing unit: 2

Supplementary Article/Info 2: with integrated wheel bearing, with integrated ABS sensor

• Brake Type: Disc Brake
• Fitting Position: Right, Left, Rear Axle
• Brake Disc Type: solid
• Inner Diameter 1 [mm]: 30
• Number of Holes: 5
• Supplementary Article/Info 2: with rubber mount, with rolling bearing
• Minimum thickness [mm]: 7
• Mounting points diameter [mm]: 12
• Tightening Torque [Nm]: 220
• Width 1 [mm]: 86
• Brake Disc Thickness [mm]: 8
• Outer Diameter [mm]: 260
• Article number of the recommended special tool: Clas : OM4217, Clas : OM8154
• Manufacturer: SNR
• Name: SN KF155.110U
• Quantity per packing unit: 2

• Brake Disc Thickness [mm]: 11
• Rim Hole Number: 5
• Thickness [mm]: 86.2
• Outer Diameter [mm]: 274
• Bolt Hole Circle Ø [mm]: 114
• Surface: Oiled
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 9.5
• Centering Diameter [mm]: 52
• Weight [kg]: 7.7
• Supplementary Article/Info 2: with ABS sensor ring, with grease cap
• Observe service information:
• Manufacturer: FEBI HAMULCE
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Vehicle Equipment: for vehicles without electric parking brake
• Outer Diameter [mm]: 260
• Brake Disc Thickness [mm]: 8
• Brake Disc Type: solid
• Minimum thickness [mm]: 7
• Height [mm]: 88.2
• Bolt Hole Circle Ø [mm]: 114
• Centering Diameter [mm]: 52.3
• Stub Axle Diameter [mm]: 30
• Surface: painted
• Number of Holes: 5
• Name: PIDURIKETAS
• Manufacturer: QUARO
• Lisainfo: QD6271
• Additional information: QD6271

Supplementary Article/Info 2: with wheel bearing, with integrated magnetic sensor ring

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 8
• Number of Holes: 5
• Height [mm]: 86
• Centering Diameter [mm]: 30
• Outer Diameter [mm]: 260
• Minimum thickness [mm]: 7
• Tightening Torque [Nm]: 110
• Manufacturer: BREMBO
• Name: BR 08.B391.27
• Quantity per packing unit: 2

Supplementary Article/Info 2: with wheel bearing kit, with ABS sensor ring, with bolts/screws

• Fitting Position: Rear Axle
• Outer Diameter [mm]: 260
• Brake Disc Thickness [mm]: 8
• Minimum thickness [mm]: 7
• Height [mm]: 86.2
• Rim Hole Number: 5
• Brake Disc Type: solid
• Centering Diameter [mm]: 52
• Bolt Hole Circle Ø [mm]: 114.3
• Supplementary Article/Info 2: with ABS sensor ring
• Weight [kg]: 6.64
• Stub Axle Diameter [mm]: 30
• Surface: Coated
• Hub Diameter [mm]: 147
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Brake Disc Thickness [mm]: 11
• Rim Hole Number: 5
• Thickness [mm]: 88
• Outer Diameter [mm]: 274
• Bolt Hole Circle Ø [mm]: 114
• Surface: Oiled
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 9.5
• Centering Diameter [mm]: 52
• Weight [kg]: 8
• Supplementary Article/Info 2: with ABS sensor ring, with grease cap
• Observe service information:
• Manufacturer: BLUE PRINT
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Right, Left, Rear Axle
• Minimum thickness [mm]: 9.5
• Brake Disc Type: solid
• Inner Diameter 1 [mm]: 30
• Number of Holes: 5
• Supplementary Article/Info 2: with rubber mount, with rolling bearing
• Mounting points diameter [mm]: 12
• Tightening Torque [Nm]: 280
• Width 1 [mm]: 86
• Brake Disc Thickness [mm]: 11
• Outer Diameter [mm]: 274
• Article number of the recommended special tool: Clas : OM4217, Clas : OM8154
• Manufacturer: SNR
• Name: SN KF155.111U
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• Rim Hole Number: 5
• Height [mm]: 86.2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 8
• Minimum thickness [mm]: 7
• Outer Diameter [mm]: 260
• Centering Diameter [mm]: 61.9
• Bolt Hole Circle Ø [mm]: 114.3
• Stub Axle Diameter [mm]: 30
• Manufacturer: DRIVE

Supplementary Article/Info 2: with grease cap, with wheel bearing, with integrated magnetic sensor ring

• Brake Disc Thickness [mm]: 11
• Rim Hole Number: 5
• Thickness [mm]: 86.2
• Outer Diameter [mm]: 274
• Bolt Hole Circle Ø [mm]: 114
• Surface: Oiled
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 9.5
• Centering Diameter [mm]: 52
• Weight [kg]: 7.7
• Supplementary Article/Info 2: with ABS sensor ring, with grease cap
• Name: SW 60 93 8305
• Manufacturer: SWAG

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Vehicle Equipment: for vehicles with electric parking brake
• Outer Diameter [mm]: 274
• Brake Disc Thickness [mm]: 11
• Brake Disc Type: solid
• Minimum thickness [mm]: 9.5
• Height [mm]: 88.1
• Bolt Hole Circle Ø [mm]: 114
• Centering Diameter [mm]: 30
• Stub Axle Diameter [mm]: 30
• Surface: painted
• Number of Holes: 5
• Name: Piduriketas
• Manufacturer: QUARO

Supplementary Article/Info 2: with wheel bearing, with integrated magnetic sensor ring

• Fitting Position: Rear Axle
• Outer Diameter [mm]: 260
• Brake Disc Thickness [mm]: 8
• Minimum thickness [mm]: 7
• Brake Disc Type: solid
• Surface: Coated
• Number of Holes: 5
• Supplementary Article/Info 2: with wheel bearing, with ABS sensor ring
• Support plate diameter [mm]: 30
• Bolt Hole Circle Ø [mm]: 114.3
• Height [mm]: 86.2
• Centering Diameter [mm]: 52.3
• Inner Diameter [mm]: 62
• Thread Size: M12x1,5
• Test Mark: E1 90R-02C0444/2511
• MAPP code available:
• Name: PIDURIKETAS
• Manufacturer: ATE
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• Vehicle Equipment: for vehicles with electric parking brake
• Brake Disc Type: solid
• Outer Diameter [mm]: 274
• Brake Disc Thickness [mm]: 11
• Minimum thickness [mm]: 9.5
• Surface: Coated
• Height [mm]: 88.1
• Hole Arrangement/Number: 05/05
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 52.2
• Stub Axle Diameter [mm]: 30
• Inner Diameter [mm]: 142
• Wheel Bolt Bore Diameter [mm]: 12
• Supplementary Article/Supplementary Info: with axle nut
• Packaging length [cm]: 29.3
• Packaging width [cm]: 29.3
• Packaging height [cm]: 10.5
• Weight [kg]: 7.7
• Name: PIDURIKETAS
• Manufacturer: TEX
• Quantity per packing unit: 2
• Quality class: Q

Supplementary Article/Info 2: with integrated magnetic sensor ring, with wheel bearing, without wheel studs, with wheel hub

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Outer Diameter [mm]: 260
• Number of Holes: 5
• Centering Diameter [mm]: 52.5
• Height [mm]: 87.9
• Bolt Hole Circle Ø [mm]: 114.3
• Brake Disc Thickness [mm]: 8
• Minimum thickness [mm]: 7
• Stub Axle Diameter [mm]: 30
• Supplementary Article/Info 2: with ABS sensor ring, with wheel bearing
• Name: PIDURIKETAS
• Manufacturer: TRW
• Quality class: Q

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Rear Axle
• Vehicle Equipment: for vehicles with electric parking brake
• Brake Disc Type: solid
• Outer Diameter [mm]: 274
• Brake Disc Thickness [mm]: 11
• Minimum thickness [mm]: 9.5
• Surface: Coated
• Height [mm]: 88.1
• Hole Arrangement/Number: 05/05
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 30
• Stub Axle Diameter [mm]: 30
• Supplementary Article/Supplementary Info: with axle nut
• Weight [kg]: 7.7
• Assy./disassy. by qualified personnel required!:
• Name: HE 8DD355117351
• Manufacturer: HELLA PAGID

Supplementary Article/Info 2: with integrated magnetic sensor ring, with wheel bearing

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Outer Diameter [mm]: 260
• Brake Disc Thickness [mm]: 8
• Supplementary Article/Info 2: with ABS sensor ring, with wheel bearing
• Height [mm]: 86.2
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 30
• Number of Holes: 5
• Quantity Unit: Piece
• Surface: Oiled
• Version: J
• Weight [kg]: 6.17
• Minimum thickness [mm]: 7
• Tightening Torque [Nm]: 110
• Packing Type: Carton
• Packaging length [cm]: 26.5
• Packaging width [cm]: 26.5
• Packaging height [cm]: 10.5
• Manufacturer: JURID

• Fitting Position: Rear Axle
• Manufacturer Restriction: Lucas, TRW
• Block Separation:
• Brake Disc Type: solid
• Outer Diameter [mm]: 260
• Brake Disc Thickness [mm]: 8
• Minimum thickness [mm]: 7
• Surface: Coated
• Height [mm]: 88.2
• Hole Arrangement/Number: 05/05
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 52.3
• Stub Axle Diameter [mm]: 30
• Inner Diameter [mm]: 135.6
• Wheel Bolt Bore Diameter [mm]: 12
• Supplementary Article/Supplementary Info: with axle nut
• Packaging length [cm]: 27.8
• Packaging width [cm]: 27.8
• Packaging height [cm]: 10.5
• Weight [kg]: 6.5
• Name: PIDURIKETAS
• Manufacturer: TEX
• Quality class: Q

Vehicle Equipment: for vehicles without electric parking brake, for vehicles with electric parking brake Supplementary Article/Info 2: with integrated magnetic sensor ring, with wheel bearing, without wheel studs, with wheel hub
