• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Number of Holes: 5
• Outer Diameter [mm]: 285
• Centering Diameter [mm]: 72
• Height [mm]: 57.8
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 11
• Bolt Hole Circle Ø [mm]: 114
• Name: PIDURIKETAS
• Manufacturer: MAX

• Brake Disc Thickness [mm]: 12
• Rim Hole Number: 5
• Thickness [mm]: 58
• Outer Diameter [mm]: 285
• Bolt Hole Circle Ø [mm]: 114
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 11
• Centering Diameter [mm]: 72
• Weight [kg]: 5.95
• Observe service information:
• Name: PIDURIKETAS
• Manufacturer: BLP
• Quantity per packing unit: 2
• Lisainfo: ADA104308 BLUEPRINT
• Additional information: ADA104308 BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• for model code: Cherokee
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Number of Holes: 5
• Test Mark: E1 90R-02C0967/2536
• Surface: Oiled
• Outer Diameter [mm]: 285
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 11
• Centering Diameter [mm]: 72
• Height [mm]: 59.4
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG4648

• Brake Disc Thickness [mm]: 12
• Rim Hole Number: 5
• Thickness [mm]: 58
• Outer Diameter [mm]: 285
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 11
• Centering Diameter [mm]: 72
• Weight [kg]: 5.95
• Observe service information:
• Manufacturer: FEBI
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28
• Number of Holes: 5
• Centering Diameter [mm]: 72.1
• Minimum thickness [mm]: 26
• Bolt Hole Circle Ø [mm]: 114
• Name: PIDURIKETAS
• Manufacturer: MAX

• Construction Year from: 01.2003
• Braking System: for vehicles with disc brakes on the rear axle
• Fitting Position: Rear Axle
• Bolt Hole Circle Ø [mm]: 72
• Height [mm]: 60
• Outer Diameter [mm]: 285
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Number of bores: 5
• Brake Disc Type: solid
• Test Mark: ECE R90 APPROVED
• Surface: painted
• for OE number: 52128411AB
• Manufacturer: ASHIKA

• Construction Year from: 01.2003
• Fitting Position: Rear Axle
• Bolt Hole Circle Ø [mm]: 72
• Height [mm]: 57
• Outer Diameter [mm]: 289.7
• Brake Disc Thickness [mm]: 12.5
• Minimum thickness [mm]: 11.3
• Number of bores: 5
• Brake Disc Type: solid
• Surface: painted
• Tightening Torque [Nm]: 129
• for OE number: 4721023AG
• Manufacturer: ASHIKA

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Number of Holes: 5
• Test Mark: E1 90R-02C0967/2532
• Surface: Oiled
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 12.5
• Minimum thickness [mm]: 11.3
• Centering Diameter [mm]: 72
• Height [mm]: 56.1
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG3739

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 28
• Bolt Hole Circle Ø [mm]: 114
• Number of Holes: 5
• Height [mm]: 65
• Centering Diameter [mm]: 72
• Surface: Coated
• Outer Diameter [mm]: 288
• Manufacturer: KAMOKA UK£ADY HAMULCOWE
• Quantity per packing unit: 2

• Construction Year from: 01.2003
• Fitting Position: Rear Axle
• Bolt Hole Circle Ø [mm]: 72
• Height [mm]: 57
• Outer Diameter [mm]: 289.7
• Brake Disc Thickness [mm]: 12.5
• Minimum thickness [mm]: 11.3
• Number of bores: 5
• Brake Disc Type: solid
• Surface: painted
• Tightening Torque [Nm]: 129
• for OE number: 4721023AG

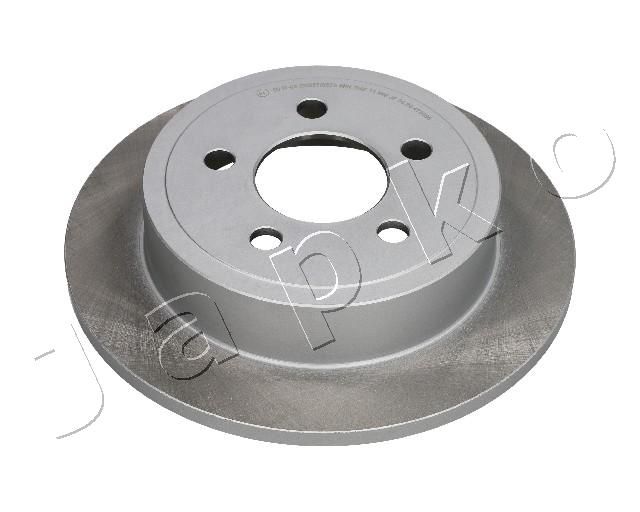

• Manufacturer: JAPKO

• Construction Year from: 01.2003
• Braking System: for vehicles with disc brakes on the rear axle
• Fitting Position: Rear Axle
• Bolt Hole Circle Ø [mm]: 72
• Height [mm]: 60
• Outer Diameter [mm]: 285
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Number of bores: 5
• Brake Disc Type: solid
• Test Mark: ECE R90 APPROVED
• Surface: painted
• for OE number: 52128411AB
• Manufacturer: JAPKO

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Number of Holes: 5
• Outer Diameter [mm]: 285
• Centering Diameter [mm]: 72
• Height [mm]: 57.8
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 11
• Bolt Hole Circle Ø [mm]: 114.3
• Colour: black
• Surface: painted
• Test Mark: E1 90R-02 C0204/0523
• Name: PIDURIKETAS
• Manufacturer: TRW
• Quality class: Q

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Rear Axle
• Construction Year from: 01.2003
• Quantity per packing unit: 2
• Outer Diameter [mm]: 285
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 11
• Height [mm]: 59.3
• Rim Hole Number: 5
• Brake Disc Type: solid
• Centering Diameter [mm]: 72
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Coated
• Hub Diameter [mm]: 195
• Weight [kg]: 5.54
• Installation Information: Important: Observe Fitting Instructions

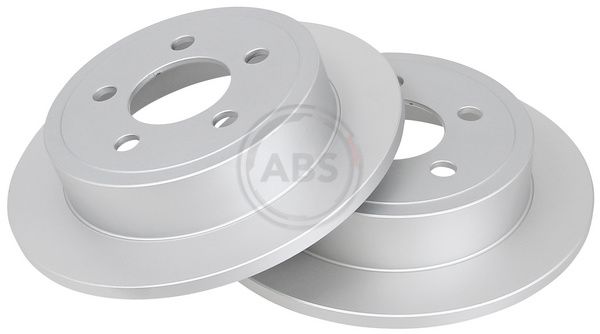

• Manufacturer: ABS

• Construction Year from: 01.2003
• Construction Year to: 12.2007
• Fitting Position: Rear Axle
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 12.4
• Minimum thickness [mm]: 11.2
• Height [mm]: 56.2
• Bolt Hole Circle Ø [mm]: 114.3
• Brake Disc Type: solid
• Centering Diameter [mm]: 72
• Number of Holes: 5
• Surface: Oiled
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 14.3
• Name: PIDURIKETAS
• Manufacturer: BOS
• Quantity per packing unit: 2

• Construction Year from: 01.2003
• Fitting Position: Rear Axle
• Outer Diameter [mm]: 290
• Height [mm]: 56
• Brake Disc Thickness [mm]: 12.5
• Minimum thickness [mm]: 11
• Centering Diameter [mm]: 72.1
• Bolt Hole Circle Ø [mm]: 114.3
• Wheel Bolt Bore Diameter [mm]: 14.3
• Number of Holes: 5
• Brake Disc Type: solid
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY

• Brake Disc Thickness [mm]: 28
• Rim Hole Number: 5
• Thickness [mm]: 64.6
• Outer Diameter [mm]: 288
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 26
• Centering Diameter [mm]: 72
• Weight [kg]: 7.54
• Observe service information:
• Manufacturer: FEBI
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Braking System: for vehicles with disc brakes on the rear axle
• Construction Year from: 01.2003
• Outer Diameter [mm]: 285
• Brake Disc Thickness [mm]: 12
• Brake Disc Type: solid
• Minimum thickness [mm]: 11
• Height [mm]: 59.3
• Bolt Hole Circle Ø [mm]: 114
• Centering Diameter [mm]: 72
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Surface: painted
• Number of Holes: 5
• Name: Piduriketas
• Manufacturer: QUARO

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Test Mark: ECE-R90
• Height [mm]: 59.3
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Outer Diameter [mm]: 284.9
• Number of Holes: 5
• Centering Diameter [mm]: 72
• Surface: painted
• Manufacturer: METELLI UKL.HAMULCOWY

• Fitting Position: Front Axle
• Rim Size [inch]: 16
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Number of Holes: 5
• Test Mark: E1 90R-02C0289/1141
• Surface: Oiled
• Outer Diameter [mm]: 301
• Brake Disc Thickness [mm]: 28
• Minimum thickness [mm]: 26.5
• Centering Diameter [mm]: 73.6
• Height [mm]: 39.1
• Manufacturer: DELPHI LOCKHEED HAMULCE

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Number of Holes: 5
• Height [mm]: 60
• Centering Diameter [mm]: 72
• Outer Diameter [mm]: 285
• Surface: Coated
• Minimum thickness [mm]: 11
• Tightening Torque [Nm]: 115
• Manufacturer: BREMBO
• Name: BR 08.A636.11
• Quality class: Q

• Brake Disc Thickness [mm]: 28
• Rim Hole Number: 5
• Thickness [mm]: 65
• Outer Diameter [mm]: 288
• Bolt Hole Circle Ø [mm]: 114
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 26
• Centering Diameter [mm]: 72
• Weight [kg]: 7.54
• Observe service information:
• Name: PIDURIKETAS
• Manufacturer: BLP
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Construction Year from: 01.2003
• Brake Disc Type: solid
• Outer Diameter [mm]: 285
• Brake Disc Thickness [mm]: 12
• Height [mm]: 59.3
• Minimum thickness [mm]: 11
• Surface: Coated
• Inner Diameter [mm]: 184
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 72
• Hole Arrangement/Number: 05/05
• Wheel Bolt Bore Diameter [mm]: 16.7
• Weight [kg]: 5.7
• Assy./disassy. by qualified personnel required!:
• Name: HE 8DD355118341
• Manufacturer: HELLA PAGID

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Test Mark: E1 90R-02 C0204/0523
• Brake Disc Type: solid
• Number of Holes: 5
• Outer Diameter [mm]: 285
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 11
• Centering Diameter [mm]: 72
• Height [mm]: 57.8
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: painted
• Quality class: PJ
• Name: Brake discs

• Fitting Position: Rear Axle
• Construction Year from: 01.2003
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Outer Diameter [mm]: 285
• Brake Disc Thickness [mm]: 12
• Height [mm]: 59.3
• Minimum thickness [mm]: 11
• Surface: Coated
• Inner Diameter [mm]: 184
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 72
• Hole Arrangement/Number: 05/05
• Wheel Bolt Bore Diameter [mm]: 16.7
• Packaging length [cm]: 31.3
• Packaging width [cm]: 31.3
• Packaging height [cm]: 14
• Weight [kg]: 5.7
• Name: PIDURIKETAS
• Manufacturer: TEX

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

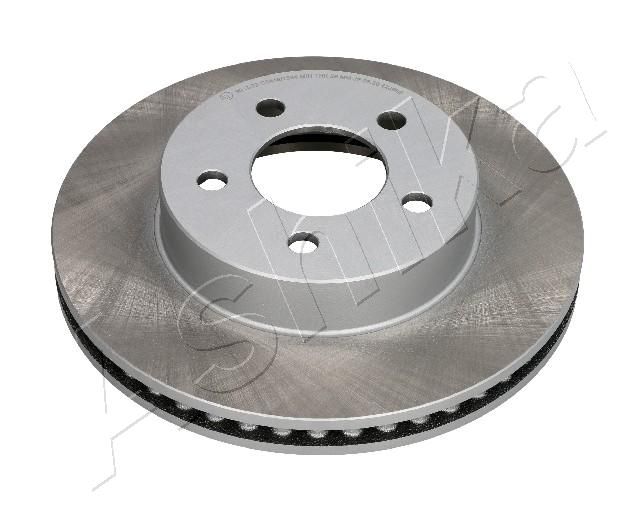

• Fitting Position: Front Axle
• Bolt Hole Circle Ø [mm]: 72
• Height [mm]: 65.2
• Outer Diameter [mm]: 287.7
• Brake Disc Thickness [mm]: 28
• Minimum thickness [mm]: 26
• Number of bores: 5
• Brake Disc Type: Vented
• Surface: painted
• for OE number: 52128247AA
• Manufacturer: ASHIKA

• Construction Year to: 12.2007
• Fitting Position: Front Axle
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28
• Minimum thickness [mm]: 26
• Height [mm]: 64.6
• Bolt Hole Circle Ø [mm]: 114.3
• Brake Disc Type: Vented
• Centering Diameter [mm]: 72
• Number of Holes: 5
• Surface: Oiled
• Machining: High-carbon
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 15.7
• Manufacturer: BOSCH
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28
• Minimum thickness [mm]: 26
• Number of Holes: 5
• Height [mm]: 64.7
• Centering Diameter [mm]: 72.1
• Bolt Hole Circle Ø [mm]: 114.3
• Thread Size: 15,7
• Colour: black
• Surface: painted
• Test Mark: E1 90R-02 C0176/0338
• Manufacturer: TRW
• Quality class: Q
• Name: Brake discs

SVHC: No information available, please contact the manufacturer!

• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 26
• Height [mm]: 64.8
• Bolt Hole Circle Ø [mm]: 114
• Centering Diameter [mm]: 72
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Surface: painted
• Number of Holes: 5
• Name: Piduriketas
• Manufacturer: QUARO

• Fitting Position: Front Axle
• Bolt Hole Circle Ø [mm]: 72
• Height [mm]: 65.2
• Outer Diameter [mm]: 287.7
• Brake Disc Thickness [mm]: 28
• Minimum thickness [mm]: 26
• Number of bores: 5
• Brake Disc Type: Vented
• Surface: painted
• for OE number: 52128247AA
• Manufacturer: JAPKO

• Fitting Position: Front Axle
• for model code: Cherokee
• Rim Size [inch]: 15
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Number of Holes: 5
• Test Mark: E1 90R-02C0339/1686
• Surface: Oiled
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28.1
• Minimum thickness [mm]: 26
• Centering Diameter [mm]: 72.1
• Height [mm]: 65.1
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG3846

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Test Mark: ECE-R90
• Height [mm]: 64.9
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 28
• Outer Diameter [mm]: 288
• Number of Holes: 5
• Centering Diameter [mm]: 72
• Surface: painted
• Manufacturer: METELLI UKL.HAMULCOWY

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28
• Minimum thickness [mm]: 26
• Height [mm]: 64.8
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Centering Diameter [mm]: 72
• Bolt Hole Circle Ø [mm]: 114.3
• Surface: Coated
• Hub Diameter [mm]: 170
• Weight [kg]: 7.7
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Rear Axle
• Construction Year from: 01.2003
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 12.5
• Supplementary Article/Info 2: without bolts/screws
• Height [mm]: 56
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 72.1
• Number of Holes: 5
• Quantity Unit: Set
• Surface: Coated
• Test Mark: R90 Homologated
• Version: JC
• Weight [kg]: 11.1
• Minimum thickness [mm]: 11
• Hole Arrangement/Number: 5
• Tightening Torque [Nm]: 129
• Packing Type: Carton
• Packaging length [cm]: 31
• Packaging width [cm]: 31
• Packaging height [cm]: 14
• Manufacturer: JURID

• Fitting Position: Rear Axle
• Construction Year from: 01.2003
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Outer Diameter [mm]: 285
• Brake Disc Thickness [mm]: 12
• Supplementary Article/Info 2: without bolts/screws
• Height [mm]: 59.9
• Bolt Hole Circle Ø [mm]: 114.3
• Number of Holes: 5
• Quantity Unit: Set
• Surface: Coated
• Version: JC
• Weight [kg]: 11.43
• Bore Diameter [mm]: 72
• Minimum thickness [mm]: 11
• Packing Type: Carton
• Packaging length [cm]: 29.5
• Packaging width [cm]: 30
• Packaging height [cm]: 14
• Manufacturer: JURID

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 28
• Number of Holes: 5
• Height [mm]: 65
• Centering Diameter [mm]: 72
• Outer Diameter [mm]: 288
• Surface: Coated
• Minimum thickness [mm]: 26
• Tightening Torque [Nm]: 115
• Manufacturer: BREMBO
• Name: BR 09.8864.11
• Quality class: Q

Brief Information: PVT vented disc. The PVT disc uses, in its ventilation chamber, pillars instead of vanes. Disc cooling capacity is enhanced by an extra 40% and therefore provides more resistance against thermal cracking.

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Outer Diameter [mm]: 302
• Brake Disc Thickness [mm]: 28
• Supplementary Article/Info 2: without bolts/screws
• Height [mm]: 39
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 73.5
• Number of Holes: 5
• Quantity Unit: Set
• Surface: Coated
• Version: JC
• Weight [kg]: 15.26
• Minimum thickness [mm]: 26.5
• Tightening Torque [Nm]: 129
• Packing Type: Carton
• Packaging length [cm]: 31.5
• Packaging width [cm]: 31.5
• Packaging height [cm]: 9.5
• Manufacturer: JURID

• Fitting Position: Front Axle
• Rim Size [inch]: 15
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28
• Supplementary Article/Info 2: without bolts/screws
• Height [mm]: 65
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 72.1
• Number of Holes: 5
• Quantity Unit: Set
• Surface: Coated
• Test Mark: R90 Homologated
• Version: JC
• Weight [kg]: 15.75
• Minimum thickness [mm]: 26
• Tightening Torque [Nm]: 115
• Packing Type: Carton
• Packaging length [cm]: 30
• Packaging width [cm]: 30
• Packaging height [cm]: 15.5
• Manufacturer: JURID

• Fitting Position: Front Axle
• Brake Disc Type: internally vented
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28
• Height [mm]: 64.8
• Minimum thickness [mm]: 26
• Machining: High-carbon
• Surface: Coated
• Inner Diameter [mm]: 158.1
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 72
• Hole Arrangement/Number: 05/05
• Wheel Bolt Bore Diameter [mm]: 15.7
• Weight [kg]: 7.8
• Assy./disassy. by qualified personnel required!:
• Name: HE 8DD355127901
• Manufacturer: HELLA PAGID

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: internally vented
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28
• Height [mm]: 64.8
• Minimum thickness [mm]: 26
• Machining: High-carbon
• Surface: Coated
• Inner Diameter [mm]: 158.1
• Bolt Hole Circle Ø [mm]: 114.3
• Centering Diameter [mm]: 72
• Hole Arrangement/Number: 05/05
• Wheel Bolt Bore Diameter [mm]: 15.7
• Packaging length [cm]: 30.8
• Packaging width [cm]: 30.8
• Packaging height [cm]: 16
• Weight [kg]: 7.8
• Manufacturer: TEXTAR TARCZE HAMULCOWE

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 288
• Brake Disc Thickness [mm]: 28
• Minimum thickness [mm]: 26
• Brake Disc Type: Vented
• Machining: High-carbon
• Surface: Coated
• Number of Holes: 5
• MAPP code available:
• Bolt Hole Circle Ø [mm]: 114.3
• Height [mm]: 64.8
• Centering Diameter [mm]: 72
• Inner Diameter [mm]: 158
• Bore Diameter [mm]: 15.5
• Test Mark: E1 90R-02C0115/0138
• Manufacturer: ATE

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Height [mm]: 59.6
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 11
• Outer Diameter [mm]: 285
• Number of Holes: 5
• Centering Diameter [mm]: 72
• Bolt Hole Circle Ø [mm]: 114.3
• Manufacturer: OYODO
