Description
In stock
Price
(incl. VAT)

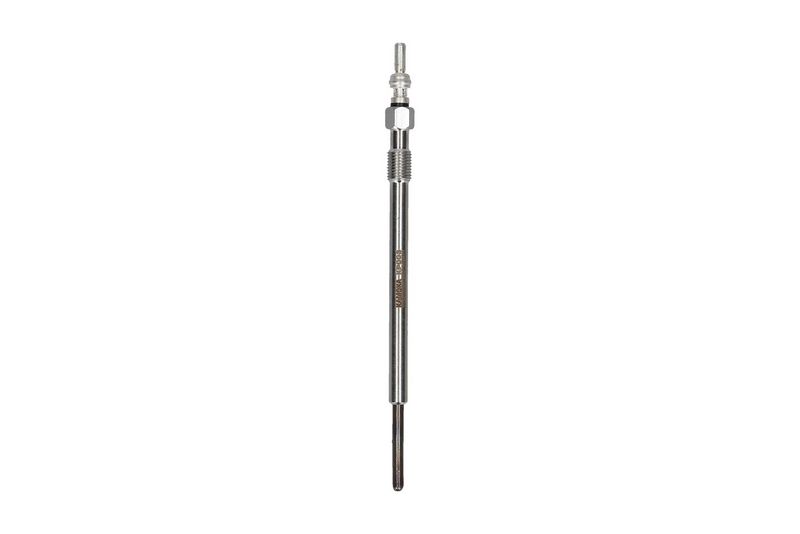

- Engine Code: Z 19 DTJ
- Glow Plug Design: Metal glow plug
- Voltage [V]: 11
- Current Strength [A]: 4
- Resistor [Ohm]: 0.9
- Overall Length [mm]: 152.7
- Fitting Depth [mm]: 29.5
-
Thread Size: M9 x 1,
0 - Spanner Size: 9 mm
- Connector type: PIN
- Manufacturer: NGK
- Lisainfo: YE07
- Additional information: YE07


- Number of circuits: 1
- Plug Type: Shrink Connector
-
Material: CuSn
(copper- tin) - Cable insulation material: Silicone
- Cable Length [mm]: 150
- Cable Cross Section [mm²]: 2.5
- Manufacturer: 3RG
- Additional information: RGI30204
- Lisainfo: RGI30204


- Engine Code: Z 19 DTJ
- Manufacturer: DENCKERMANN ELEKTRONIKA CEWKI CZUJNIKI


- Voltage [V]: 11
- for OE number: 46792355
- Diameter [mm]: 4
- Length [mm]: 150
- Spanner Size: 9
-
Glow Plug Design: Metal glow plug,
Pencil- type Glow Plug - Fitting Depth [mm]: 29
- Manufacturer: KAMOKA


- Voltage [V]: 11
- Thread Size: M9x1
- Overall Length [mm]: 151
- Spanner Size: 9
- Manufacturer: ASHIKA


- Voltage [V]: 11
- Thread Size: M9x1.0
- Connector type: 4 mm PIN
- Length [mm]: 152
- Spanner Size: 9mm
- Current Strength [A]: 13
-
Glow Plug Design: after-
glow capable, Pencil- type Glow Plug - Fitting Depth [mm]: 30
- Manufacturer: FAST


- Number of circuits: 1
- Plug Type: Shrink Connector
-
Material: CuSn
(copper- tin) - Cable insulation material: Silicone
- Cable Length [mm]: 60
- Number of pins: 1
- Cable Cross Section [mm²]: 2.5
- Manufacturer: 3RG

- Engine Code: Z 19 DTJ
- Voltage [V]: 11
- Connector type: PIN
-
Thread Size: M9 x 1,
0 - Resistor [Ohm]: 0.9
- Overall Length [mm]: 152.7
- Spanner Size: 9 mm
- Current Strength [A]: 4
- Manufacturer: OYODO



- Voltage [V]: 11
- Length [mm]: 120
- Weight [kg]: 0.026
- Packaging length [cm]: 12.5
- Packaging width [cm]: 2.5
- Packaging height [cm]: 2
- Manufacturer: FEBEST



- Engine Number to: 1705894
- Voltage [V]: 11
- Length [mm]: 144
- Weight [kg]: 0.048
- Packaging length [cm]: 16
- Packaging width [cm]: 2.4
- Packaging height [cm]: 2
- Manufacturer: FEBEST


- Number of circuits: 1
- Supplementary Article/Supplementary Info: with squeeze connector
- Cable Length [mm]: 150
- Observe service information:
- Manufacturer: FEBI BILSTEIN
- Lisainfo: 107037 FEBI
- Additional information: 107037 FEBI
General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.



- Required quantity: 4
-
Glow Plug Design: after-
glow capable, Pencil- type Glow Plug - Voltage [V]: 11
- Connector type: 4 mm PIN
- Length [mm]: 152
- Fitting Depth [mm]: 30
-
Thread Size: M9x1,
0 - Spanner Size: 9 mm
- Current Strength [A]: 13
- Cone Pitch: 93
- Tightening torque from [Nm]: 8
- Tightening torque to [Nm]: 10
- Failure Moment [Nm]: 22
- Manufacturer: BERU
Technical Information: Cover glow plug thread and -shaft with mounting grease, (GKF 01 - Order No. 0 890 300 034), before fitting to enable easier removal and prevent corrosion.




- Required quantity: 4
- Voltage [V]: 11
- Thread Size: M9x1.0
-
alternative item: -
- for OE number: 46792355
- Connector type: Pin
- Spanner Size: 9
- Version: Double coil
- Overall Length [mm]: 151
- Weight [g]: 30.4
- Tightening torque from [Nm]: 10
- Tightening torque to [Nm]: 12
- Manufacturer: DENSO
- Name: Glow plug
- Quality class: Q
Additional information: "Tootja: DENSO
ASTRA H
(kvaliteediklass: Q)"
Lisainfo: "Tootja: DENSO
ASTRA H
(kvaliteediklass: Q)"





























- Construction Year to: 03.2010
-
Glow Plug Design: Pencil-
type Glow Plug, after- glow capable - Voltage [V]: 11
- Length [mm]: 152
-
Thread Size: M 9 x 1,
0 - Cone Pitch: 93
- Spanner Size: 9
- Tightening torque from [Nm]: 0
- Tightening torque to [Nm]: 10
- Connector type: M 4
- Fitting Depth [mm]: 30
- Manufacturer: BOSCH


-
Glow Plug Design: Pencil-
type Glow Plug - Number of pins: 1
- long version:
- Length [mm]: 60
- angled version:
- Number of circuits: 1
- Cable Length [mm]: 150
- Cable Cross Section [mm²]: 2.5
- Cable insulation material: Silicone
- Supplementary Article/Supplementary Info: with shrink squeeze connector
-
Material: CuSn
(copper- tin) - Manufacturer: METZGER
- Lisainfo: 2324016 METZGER
- Additional information: 2324016 METZGER


-
Glow Plug Design: Pencil-
type Glow Plug - Number of pins: 1
- short version:
- Length [mm]: 40
- angled version:
- Number of circuits: 1
- Cable Length [mm]: 150
- Cable Cross Section [mm²]: 2.5
- Cable insulation material: Silicone
- Supplementary Article/Supplementary Info: with shrink squeeze connector
-
Material: CuSn
(copper- tin) - Manufacturer: METZGER



- Technical Information Number: HKT
- Overall Length [mm]: 119
- Length 1 [mm]: 70
- Length 2 [mm]: 27
- Diameter [mm]: 4
- Voltage [V]: 11
- Manufacturer: JAPKO



- Technical Information Number: HKT
- Overall Length [mm]: 131.5
- Length 1 [mm]: 77
- Length 2 [mm]: 28
- Diameter [mm]: 5
- Voltage [V]: 11
- Manufacturer: JAPKO
