• Engine Code: AQD, APR, AMX, ALG, ACK
• Vehicle Identification Number (VIN) from: 8D-T-309403
• Quantity per packing unit: 10
• Inner Diameter [mm]: 28.5
• Sealing Ring Diameter [mm]: 28.5
• Thickness [mm]: 3.8
• Shape: O-Ring
• Manufacturer: TOPRAN

Material: EPDM (ethylene propylene diene Monomer (M-class) rubber) General Information: Any and all spare parts we supply are solely intended for the designated purpose as defined by us. Installation by trained personnel only. Our products are usually supplied without assembly instructions. Installation in vehicles other than those specified by us may lead to the exclusion of warranty.

• Vehicle Identification Number (VIN) from: 8D-T-309403
• Quantity per packing unit: 10
• Thickness [mm]: 3.8
• Outer Diameter [mm]: 28.5
• Material: Rubber
• Manufacturer: VAICO

General Information: In the warranty, we always make a distinction between wear parts and vehicle parts. All wear parts are subject to a reduced warranty period and a maximum mileage. Brake components such as brake disks, brake pads, etc. maximum of 1000 km (break-in period). Therefore, warranty claims for brake parts are only reviewed with an installation invoice and a record of the wheel hub run-out measurement, including photos. For brake disks and brake pads, the break-in requirements specified by the vehicle manufacturer must be observed. When replacing brakes, the chassis components must always be checked with regard to clearance and the wheel hub with regard to wobble, and the appropriate documentation must be produced. If the vehicle is no longer in its original condition due to tuning work such as wheel accessories and tracking plates, the entitlement to make warranty claims is lost due to third-party work. The same warranty claims are lost if the vehicle is used for motor sports or similar events.

• Construction Year from: 11.1996
• Pressure [bar]: 1.2
• Manufacturer: ASHIKA

• Fitting Position: Main Expansion Tank
• Quantity per packing unit: 25
• Inner Diameter [mm]: 28.3
• Outer Diameter [mm]: 32.1
• Thickness [mm]: 3.9
• Shape: O-Ring
• Manufacturer: ELRING

Material: EPDM (ethylene propylene diene Monomer (M-class) rubber)

• Pressure [bar]: 1.5
• Manufacturer: ASHIKA

• Engine Code: AMX, APR, ALG, ACK, AQD
• Colour: blue
• Material: Plastic
• Pressure from [bar]: 1.5
• Manufacturer: VAICO

General Information: In the warranty, we always make a distinction between wear parts and vehicle parts. All wear parts are subject to a reduced warranty period and a maximum mileage. Brake components such as brake disks, brake pads, etc. maximum of 1000 km (break-in period). Therefore, warranty claims for brake parts are only reviewed with an installation invoice and a record of the wheel hub run-out measurement, including photos. For brake disks and brake pads, the break-in requirements specified by the vehicle manufacturer must be observed. When replacing brakes, the chassis components must always be checked with regard to clearance and the wheel hub with regard to wobble, and the appropriate documentation must be produced. If the vehicle is no longer in its original condition due to tuning work such as wheel accessories and tracking plates, the entitlement to make warranty claims is lost due to third-party work. The same warranty claims are lost if the vehicle is used for motor sports or similar events.

• Surve (bar) kuni: 1,4
• Piirangutega toode/piirangu info 2: korgiga
• OE-numbri jaoks: 8D0121403L
• Manufacturer: MEAT&DORIA

• Name: Radiator
• Quality class: ZJ

Lisainfo: A4 94-00 (kvaliteediklass ZJ)

• Name: Radiator
• Quality class: ZJ

Lisainfo: A4 94-00 (kvaliteediklass ZJ)

• Name: Radiator
• Quality class: ZJ

Lisainfo: A4 94-00 (kvaliteediklass ZJ)

• Core Length [mm]: 632
• Core Width [mm]: 398
• Core Depth [mm]: 34
• Transmission Type: Manual Transmission
• Water Tank Material (radiator): Plastic
• Cooling fins material: Aluminium
• Assy./disassy. by qualified personnel required!:
• Manufacturer: ABAKUS LORO
• Name: AB 053-017-0055

General Information: The following information is for general and informational purposes only and does not constitute warranty terms. Warranty terms and conditions are available from our dealers and in our general terms and conditions of sale. Abakus spare/repair parts are intended only for vehicle repairs in order to restore their original functionality. Abakus spare/repair parts are used or sold to users only for the purpose of repairing vehicles to restore their original look and functionality and are not original/genuine/OE/OEM/OES replacement parts. These items do not originate from the vehicle manufacturer and may be the subject of a design not owned by Abakus and the manufacturer of this spare part. They may only be used for repairs to restore the intended vehicle to its original appearance. Our products are delivered without instruction of installation. Installation of our product may only be carried out by trained specialist technicians in specific car repairs. Products supplied by us are exclusively intended for proper and appropriate use. The warranty may become invalid in the event of: improper installation or repair, unsuitable application or use, installation or repair made outside specialist car workshops. Warranty claims are lost if the vehicle is modified and used for motor sports, tuning or similar events (except our tuning parts which are described in TecDoc and on our price list). Warranty application should include complete documentation among others: chassis no., first registration, vehicle mileage, information about LPG installation, fault memory log, pictures, our QC (quality check) code, installation invoice, contact details of the car repair workshop performing the replacement or repair. Warranty application are available in our Client Panel system. Complaints may require supplementing data such as error memory logs. Incomplete documentation may result in rejection of the claim. Any damage caused during transport is not considered quality damage and will be considered on an individual basis. The product is intended for use within the performance limits specified by the manufacturer and should only be used by qualified personnel who have been trained to operate this product. Before each use, the product should be checked for damage or fixing of its parts and not used if any defects or loose parts are found. Failure to follow the manufacturer's guidelines could result in potential product damage or even injury. Wear appropriate protective clothing if necessary when working with the product.

• Name: Radiator
• Quality class: ZJ

Lisainfo: A4 94-00 (kvaliteediklass ZJ)

• Netopikkus [mm]: 630
• Netolaius [mm]: 396
• Netosügavus [mm]: 34
• Manufacturer: JPN

• Transmission Type: Manual Transmission
• Core Length [mm]: 632
• Core Width [mm]: 398
• Core Depth [mm]: 32
• Cooling fins material: Aluminium
• Water Tank Material (radiator): Plastic
• Lisainfo: Radiator, 630x404 mm, PL/ALU
• Additional information: Radiator, 630x404 mm, PL/ALU

• Radiaatori tüüp: Jahutusribid mehaaniliselt ühendatud
• Jahutusribi materjal: Alumiinium
• Materjal veekamber (radiaator): Plastik
• Netosügavus [mm]: 32
• Netopikkus [mm]: 632
• Netolaius [mm]: 398
• Manufacturer: KAMOKA

• Construction Year to: 12.1998
• Core Length [mm]: 632
• Core Width [mm]: 398
• Core Depth [mm]: 34
• Transmission Type: Automatic Transmission
• Water Tank Material (radiator): Plastic
• Cooling fins material: Aluminium
• Radiator type: Mechanically jointed cooling fins
• Assy./disassy. by qualified personnel required!:
• Manufacturer: ABAKUS

General Information: The following information is for general and informational purposes only and does not constitute warranty terms. Warranty terms and conditions are available from our dealers and in our general terms and conditions of sale. Abakus spare/repair parts are intended only for vehicle repairs in order to restore their original functionality. Abakus spare/repair parts are used or sold to users only for the purpose of repairing vehicles to restore their original look and functionality and are not original/genuine/OE/OEM/OES replacement parts. These items do not originate from the vehicle manufacturer and may be the subject of a design not owned by Abakus and the manufacturer of this spare part. They may only be used for repairs to restore the intended vehicle to its original appearance. Our products are delivered without instruction of installation. Installation of our product may only be carried out by trained specialist technicians in specific car repairs. Products supplied by us are exclusively intended for proper and appropriate use. The warranty may become invalid in the event of: improper installation or repair, unsuitable application or use, installation or repair made outside specialist car workshops. Warranty claims are lost if the vehicle is modified and used for motor sports, tuning or similar events (except our tuning parts which are described in TecDoc and on our price list). Warranty application should include complete documentation among others: chassis no., first registration, vehicle mileage, information about LPG installation, fault memory log, pictures, our QC (quality check) code, installation invoice, contact details of the car repair workshop performing the replacement or repair. Warranty application are available in our Client Panel system. Complaints may require supplementing data such as error memory logs. Incomplete documentation may result in rejection of the claim. Any damage caused during transport is not considered quality damage and will be considered on an individual basis. The product is intended for use within the performance limits specified by the manufacturer and should only be used by qualified personnel who have been trained to operate this product. Before each use, the product should be checked for damage or fixing of its parts and not used if any defects or loose parts are found. Failure to follow the manufacturer's guidelines could result in potential product damage or even injury. Wear appropriate protective clothing if necessary when working with the product.

• Netopikkus [mm]: 632
• Netolaius [mm]: 415
• Netosügavus [mm]: 34
• Piirangutega toode/piirangu info: õlijahutiga
• Seerianumber: CCH-AU-004

• Transmission Type: 5-Speed Manual Transmission
• Material: Aluminium
• Core Length [mm]: 632
• Core Width [mm]: 415
• Core Depth [mm]: 34
• for OE number: 4B0121251F
• Version: Alternative
• Radiator type: Mechanically jointed cooling fins
• Manufacturer: NRF
• Lisainfo: 632*415*34
• Additional information: 632*415*34

• Construction Year to: 11.2000
• Transmission Type: Manual Transmission
• Core Length [mm]: 630
• Core Width [mm]: 397
• Core Depth [mm]: 32
• Inlet Ø [mm]: 32
• Outlet Ø [mm]: 32
• Radiator type: Mechanically jointed cooling fins
• Packaging length [cm]: 79
• Packaging width [cm]: 47
• Packaging height [cm]: 14
• Weight [kg]: 3.36

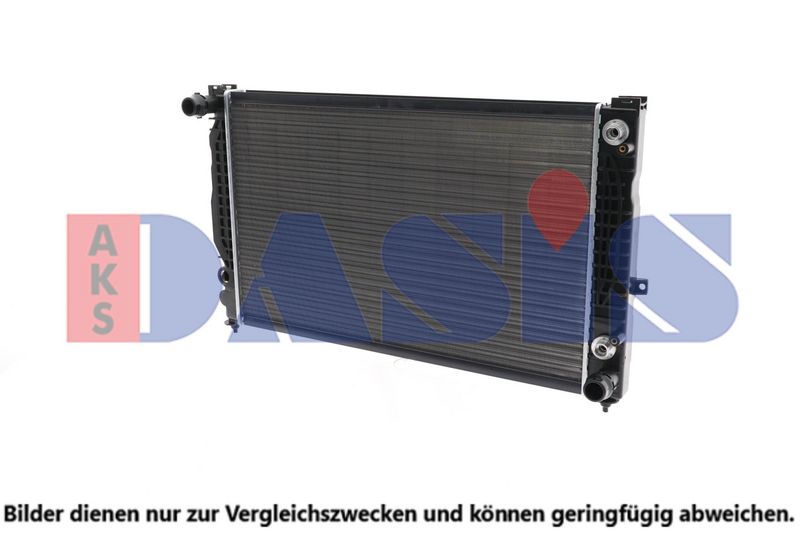

• Manufacturer: AKSDASIS

• Transmission Type: Manual Transmission
• Cooling fins material: Aluminium
• Core Depth [mm]: 32
• Core Length [mm]: 630
• Core Width [mm]: 396
• Radiator type: Mechanically jointed cooling fins
• Water Tank Material (radiator): Plastic

Technical Information: Install in Minutes! Box includes all extras like O-rings, clips, and washers

• Transmission Type: Manual Transmission
• Vehicle Equipment: for vehicles with/without air conditioning
• Construction Year from: 03.1996
• Construction Year to: 09.2000
• Netosügavus [mm]: 32
• Netopikkus [mm]: 630
• Netolaius [mm]: 398
• Radiaatori tüüp: Jahutusribid joodetud
• Materjal veekamber (radiaator): Plastik
• Tehniline informatsioon: quick connection inlet/outlet
• Name: Radiator
• Quality class: PJ

Lisainfo: A4 94-00 (kvaliteediklass P) Additional information: A4 94-00 (kvaliteediklass P)

• Transmission Type: Automatic Transmission
• Core Length [mm]: 632
• Core Width [mm]: 399
• Core Depth [mm]: 32
• Cooling fins material: Aluminium
• Water Tank Material (radiator): Plastic
• Manufacturer: JP GROUP
• Lisainfo: Radiator, 630x404 mm, PL/ALU
• Additional information: Radiator, 630x404 mm, PL/ALU

• Transmission Type: 5-Speed Manual Transmission
• Cooling fins material: Aluminium
• Core Depth [mm]: 34
• Core Length [mm]: 634
• Core Width [mm]: 388
• Radiator type: Mechanically jointed cooling fins
• Water Tank Material (radiator): Plastic

• Transmission Type: Manual Transmission
• Cooling fins material: Aluminium
• Core Depth [mm]: 34
• Core Length [mm]: 635
• Core Width [mm]: 398
• Inlet Ø [mm]: 32.5
• Outlet Ø [mm]: 32.5
• Radiator type: Mechanically jointed cooling fins
• Supplementary Article/Info 2: without top, without expansion tank
• Supplementary Article/Supplementary Info: with gaskets/seals
• Water Tank Material (radiator): Plastic
• Manufacturer: NISSENS
• Lisainfo: SKODA SUPERB I (3U) (02-) 2.5 TDi
• Additional information: SKODA SUPERB I (3U) (02-) 2.5 TDi

Installation Information: FIRST FIT - a time-saving installation! Find all additional parts such as caps, gaskets, nuts, clamps, plugs, bolts, fittings, screws and other parts in the box

• Transmission Type: 5-Speed Manual Transmission
• Material: Aluminium
• Core Length [mm]: 632
• Core Width [mm]: 398
• Core Depth [mm]: 32
• Supplementary Article/Info 2: with seal ring
• Radiator type: Brazed cooling fins
• Manufacturer: NRF
• Lisainfo: 632*398*32
• Additional information: 632*398*32

• Radiaatori tüüp: Jahutusribid mehaaniliselt ühendatud
• Jahutusribi materjal: Alumiinium
• Materjal veekamber (radiaator): Plastik
• Netosügavus [mm]: 32
• Netopikkus [mm]: 632
• Netolaius [mm]: 399
• Manufacturer: KAMOKA

• Transmission Type: Automatic Transmission
• Material: Aluminium
• Heating/Cooling: for vehicles with combined radiator/ oil cooler
• Core Length [mm]: 632
• Core Width [mm]: 415
• Core Depth [mm]: 34
• for OE number: 8D0121251B
• Version: Alternative
• Radiator type: Mechanically jointed cooling fins
• Manufacturer: NRF
• Lisainfo: 632*415*34
• Additional information: 632*415*34

• Core Length [mm]: 630
• Core Width [mm]: 397
• Core Depth [mm]: 36
• Transmission Type: Automatic Transmission
• Vehicle Equipment: for vehicles with/without air conditioning
• Heating/Cooling: for vehicles with combined radiator/ oil cooler
• Inlet Ø [mm]: 32
• Outlet Ø [mm]: 32
• Radiator type: Mechanically jointed cooling fins
• Packaging length [cm]: 79.5
• Packaging width [cm]: 48
• Packaging height [cm]: 13.5
• Weight [kg]: 3.58

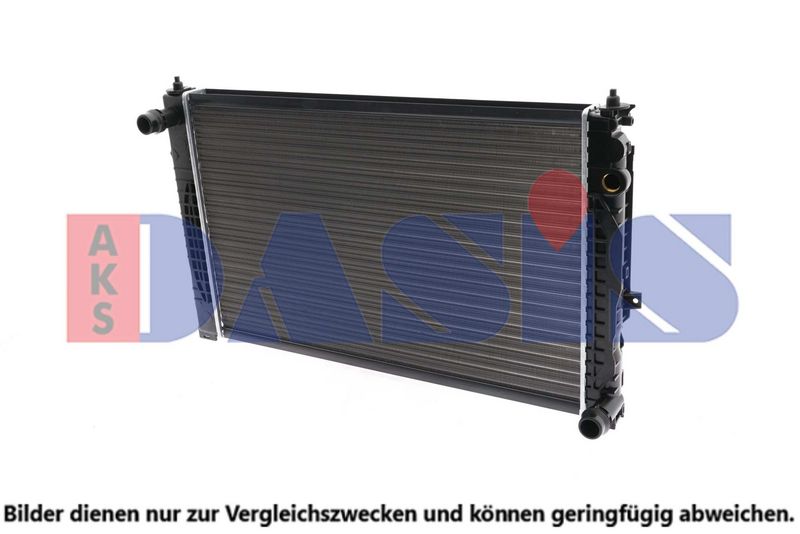

• Manufacturer: AKSDASIS

• Construction Year to: 11.2000
• Engine Code: ACK, ALG, AMX, APR, AQD, AHA, ATQ
• Transmission Type: 5-Speed Automatic Transmission
• Core Length [mm]: 635
• Core Width [mm]: 396
• Core Depth [mm]: 23
• Radiator type: Mechanically jointed cooling fins
• Technical Information: Aluminium core with plastyic tanks
• Name: MM BM1855
• Manufacturer: MAGNETI MARELLI

• Transmission Type: Automatic Transmission
• Vehicle Equipment: for vehicles with/without air conditioning
• Construction Year from: 03.1999
• Construction Year to: 09.2000
• Netosügavus [mm]: 32
• Netopikkus [mm]: 630
• Netolaius [mm]: 385
• Radiaatori tüüp: Jahutusribid joodetud
• Materjal veekamber (radiaator): Plastik
• Tehniline informatsioon: quick connection inlet/outlet
• Name: Radiator
• Quality class: PJ

Lisainfo: A4 94-00 (kvaliteediklass PJ) Additional information: A4 94-00 (kvaliteediklass PJ)

• Transmission Type: 5-Speed Manual Transmission
• Cooling fins material: Aluminium
• Core Depth [mm]: 34
• Core Length [mm]: 635
• Core Width [mm]: 398
• Inlet Ø [mm]: 32
• Outlet Ø [mm]: 32.5
• Radiator type: Mechanically jointed cooling fins
• Supplementary Article/Info 2: without top, without expansion tank
• Supplementary Article/Supplementary Info: with gaskets/seals
• Water Tank Material (radiator): Plastic
• Name: NI 60496
• Manufacturer: NISSENS
• Lisainfo: AUDI A 4 / S 4 (B5) (94-) 2.6 i V6
• Additional information: AUDI A 4 / S 4 (B5) (94-) 2.6 i V6

Installation Information: FIRST FIT - a time-saving installation! Find all additional parts such as caps, gaskets, nuts, clamps, plugs, bolts, fittings, screws and other parts in the box

• Radiator type: Mechanically jointed cooling fins
• Heating/Cooling: for vehicles with high performance radiator
• Core Length [mm]: 632
• Core Width [mm]: 385
• Core Depth [mm]: 32
• Water Tank Material (radiator): Plastic
• Supplementary Article/Info 2: with quick couplers, with screw
• Transmission Type: Manual Transmission
• Packaging height [cm]: 17
• Net Weight [g]: 3,686
• Packaging width [cm]: 55
• Packaging length [cm]: 84
• Manufacturer: MAHLE
• Name: MH CR647000S

General Information: The core dimensions / product measurements of the different manufacturers /vendors might be different due to various production technologies. These dimensions / product measurements are not an indication for the performance or the correct fitting accuracy of the product itself.

• Transmission Type: Automatic Transmission
• Cooling fins material: Aluminium
• Core Depth [mm]: 34
• Core Length [mm]: 635
• Core Width [mm]: 398
• Inlet Ø [mm]: 32
• Outlet Ø [mm]: 32.5
• Radiator type: Mechanically jointed cooling fins
• Supplementary Article/Info 2: without top, without expansion tank
• Supplementary Article/Supplementary Info: with oil cooler, with gaskets/seals
• Water Tank Material (radiator): Plastic
• Manufacturer: NISSENS
• Lisainfo: AUDI A 4 / S 4 (B5) (94-) 2.6 i V6
• Additional information: AUDI A 4 / S 4 (B5) (94-) 2.6 i V6

Installation Information: FIRST FIT - a time-saving installation! Find all additional parts such as caps, gaskets, nuts, clamps, plugs, bolts, fittings, screws and other parts in the box

• Cooling fins material: Aluminium
• Core Depth [mm]: 34
• Core Length [mm]: 632
• Core Width [mm]: 415
• Inlet Ø [mm]: 32.5
• Outlet Ø [mm]: 32.5
• Radiator type: Mechanically jointed cooling fins
• Supplementary Article/Info 2: without expansion tank
• Supplementary Article/Supplementary Info: with oil cooler, without gasket/seal
• Water Tank Material (radiator): Plastic
• Manufacturer: NISSENS
• Name: NI 60498
• Lisainfo: AUDI A 4 / S 4 (B5) (94-) 2.6 i V6
• Additional information: AUDI A 4 / S 4 (B5) (94-) 2.6 i V6

Installation Information: FIRST FIT - a time-saving installation! Find all additional parts such as caps, gaskets, nuts, clamps, plugs, bolts, fittings, screws and other parts in the box

• Transmission Type: Automatic Transmission
• Material: Aluminium
• Heating/Cooling: for vehicles with combined radiator/ oil cooler
• Core Length [mm]: 632
• Core Width [mm]: 396
• Core Depth [mm]: 34
• Supplementary Article/Info 2: with seal ring
• Radiator type: Brazed cooling fins
• Manufacturer: NRF
• Lisainfo: 632*428,8*30
• Additional information: 632*428,8*30

• Transmission Type: Automatic Transmission
• Cooling fins material: Aluminium
• Core Depth [mm]: 34
• Core Length [mm]: 632
• Core Width [mm]: 415
• Inlet Ø [mm]: 32.5
• Outlet Ø [mm]: 32.5
• Radiator type: Mechanically jointed cooling fins
• Supplementary Article/Info 2: without expansion tank
• Supplementary Article/Supplementary Info: with oil cooler
• Water Tank Material (radiator): Plastic

Technical Information: Install in Minutes! Box includes all extras like O-rings, clips, and washers

• Construction Year to: 11.2000
• Engine Code: ACK,ALG,AMX,APR,AQD, ATX
• Transmission Type: 5-Speed Automatic Transmission
• Core Width [mm]: 412
• Core Length [mm]: 630
• Core Depth [mm]: 34
• Material: Aluminium
• Inlet Ø [mm]: 32
• Outlet Ø [mm]: 32
• Heating/Cooling: for vehicles with oil cooler
• Supplementary Article/Info 2: without coolant regulator
• Radiator type: Mechanically jointed cooling fins
• Weight [kg]: 5.57
• Manufacturer: VALEO

• Radiator type: Mechanically jointed cooling fins
• Core Length [mm]: 630
• Core Width [mm]: 397
• Core Depth [mm]: 32
• Water Tank Material (radiator): Plastic
• Supplementary Article/Info 2: with screw
• Packaging height [cm]: 13.5
• Net Weight [g]: 3,349
• Packaging width [cm]: 51
• Packaging length [cm]: 84
• Manufacturer: MAHLE BEHR HELLA TERMIKA

General Information: The core dimensions / product measurements of the different manufacturers /vendors might be different due to various production technologies. These dimensions / product measurements are not an indication for the performance or the correct fitting accuracy of the product itself.

• Transmission Type: Automatic Transmission
• Cooling fins material: Aluminium
• Core Depth [mm]: 32
• Core Length [mm]: 632
• Core Width [mm]: 399
• Inlet Ø [mm]: 32
• Outlet Ø [mm]: 32
• Radiator type: Brazed cooling fins
• Supplementary Article/Supplementary Info: with oil cooler, with gaskets/seals
• Water Tank Material (radiator): Plastic
• Manufacturer: NISSENS
• Lisainfo: SKODA SUPERB I (3U) (02-) 2.5 TDi
• Additional information: SKODA SUPERB I (3U) (02-) 2.5 TDi

Supplementary Article/Info 2: without top, without expansion tank, with thermostat Installation Information: FIRST FIT - a time-saving installation! Find all additional parts such as caps, gaskets, nuts, clamps, plugs, bolts, fittings, screws and other parts in the box

• Construction Year from: 03.1999
• Construction Year to: 09.2000
• Transmission Type: Automatic Transmission
• Core Length [mm]: 630
• Core Width [mm]: 399
• Core Depth [mm]: 28
• Material: Aluminium
• Frame Material: Plastic
• for OE number: 4B0121251AE
• Weight [g]: 4,094
• Gross Weight [g]: 5,850
• alternative item: -
• Manufacturer: DENSO
