• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer diameter [mm]: 344
• Brake Disc Thickness [mm]: 30
• Number of Holes: 5
• Surface: Coated
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• Fitting Position: Rear Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) to: 5A999999
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Number of Holes: 5
• Test Mark: E1 90R-02C0100/1556
• Surface: Coated
• Outer Diameter [mm]: 304
• Brake Disc Thickness [mm]: 12.6
• Minimum thickness [mm]: 11.7
• Centering Diameter [mm]: 70
• Height [mm]: 62.7
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG3227C
• Quality class: PJ

• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) to: 3A129289
• Braking System: for vehicles with a standard brake system
• Quantity per packing unit: 2
• Outer Diameter [mm]: 304
• Brake Disc Thickness [mm]: 12.7
• Minimum thickness [mm]: 11.7
• Height [mm]: 63
• Rim Hole Number: 5
• Brake Disc Type: solid
• Centering Diameter [mm]: 70
• Bolt Hole Circle Ø [mm]: 120
• Hub Diameter [mm]: 173
• Weight [kg]: 6.7
• Installation Information: Important: Observe Fitting Instructions

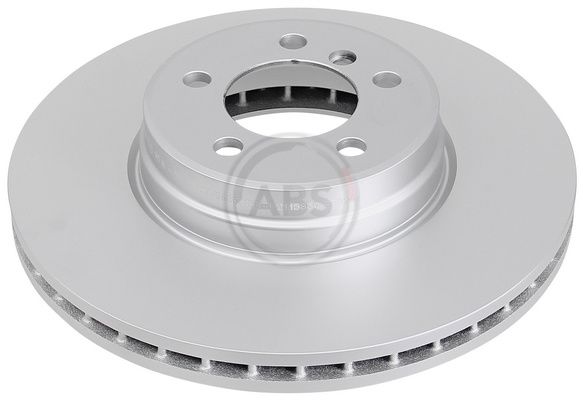

• Manufacturer: ABS

• Engine Code: AJ 4.4
• Construction Year from: 05.2005
• Construction Year to: 08.2009
• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) to: 3A129289
• Outer Diameter [mm]: 304
• Brake Disc Thickness [mm]: 12.6
• Minimum thickness [mm]: 11.7
• Height [mm]: 62.6
• Bolt Hole Circle Ø [mm]: 120
• Brake Disc Type: solid
• Centering Diameter [mm]: 70.1
• Number of Holes: 5
• Surface: Oiled
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 14.4
• Manufacturer: BOSCH
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) to: 3A129289
• Brake Disc Type: solid
• Outer Diameter [mm]: 305
• Brake Disc Thickness [mm]: 12.6
• Minimum thickness [mm]: 11.7
• Centering Diameter [mm]: 70
• Height [mm]: 63
• Number of Holes: 5
• Thread Size: 14,3
• Bolt Hole Circle Ø [mm]: 120
• Colour: black
• Surface: painted
• Test Mark: E190R-02C0190/0597
• Name: PIDURIKETAS
• Manufacturer: TRW
• Lisainfo: DF2791S
• Additional information: DF2791S

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) to: 3A129289
• Braking System: for vehicles with a standard brake system
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12.6
• Number of Holes: 5
• Height [mm]: 63
• Centering Diameter [mm]: 70
• Outer Diameter [mm]: 304
• Surface: Coated
• Minimum thickness [mm]: 11.7
• Tightening Torque [Nm]: 140
• Name: BR 08.6838.11
• Manufacturer: BREMBO

• Vehicle Identification Number (VIN) to: 5A999999
• Fitting Position: Front Axle
• Test Mark: ECE-R90
• Height [mm]: 76
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 30
• Outer Diameter [mm]: 344
• Number of Holes: 5
• Centering Diameter [mm]: 79
• Surface: painted
• Manufacturer: METELLI UKL.HAMULCOWY
• Quantity per packing unit: 2

• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) to: 6A0000000
• Fitting Position: Rear Axle
• Outer Diameter [mm]: 304
• Height [mm]: 62.8
• Brake Disc Thickness [mm]: 12.6
• Minimum thickness [mm]: 11.7
• Centering Diameter [mm]: 70
• Bolt Hole Circle Ø [mm]: 120
• Wheel Bolt Bore Diameter [mm]: 14.3
• Number of Holes: 5
• Brake Disc Type: solid
• Surface: Zink flake coated
• Quality: PREMIUM
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY

General Information: MEYLE-PD brake disc with high-grade finish and brillant appearance: Modern cutting-edge coating technology for long lasting anti-corrosion protection. No degreasing needed, ready-to-fit. Easy rim disassembly due to coated mounting surfaces.

• Fitting Position: Rear Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) to: 5A999999
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Number of Holes: 5
• Test Mark: E1 90R-02C0241/2020
• Surface: Oiled
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 11.9
• Minimum thickness [mm]: 10.4
• Centering Diameter [mm]: 79
• Height [mm]: 74.9
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG4066

• Vehicle Identification Number (VIN) to: *********5A999999
• Brake Disc Thickness [mm]: 12
• Rim Hole Number: 5
• Number of mounting bores: 2
• Thickness [mm]: 74.8
• Outer Diameter [mm]: 354
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 10.4
• Centering Diameter [mm]: 79
• Weight [kg]: 8.8
• Observe service information:
• Manufacturer: FEBI HAMULCE

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Vehicle Identification Number (VIN) to: *********5A999999
• Brake Disc Thickness [mm]: 12
• Rim Hole Number: 5
• Number of mounting bores: 2
• Thickness [mm]: 75
• Outer Diameter [mm]: 354
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 10.4
• Centering Diameter [mm]: 79
• Weight [kg]: 9.455
• Observe service information:
• Manufacturer: BLUE PRINT HAMULCE
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) from: 6A000001
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Number of Holes: 5
• Test Mark: E1 90R-02C0506/2006
• Surface: Coated
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 20
• Minimum thickness [mm]: 17
• Centering Diameter [mm]: 79
• Height [mm]: 75
• Name: DE BG4021C
• Manufacturer: DELPHI

• Special Purpose Vehicle: not for armoured vehicles
• Brake Disc Type: Vented
• Outer Diameter [mm]: 344
• Brake Disc Thickness [mm]: 29.9
• Fitting Position: Front Axle
• Height [mm]: 75.9
• Number of Holes: 5
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Minimum thickness [mm]: 28.4
• Name: PIDURIKETAS
• Manufacturer: MAX

• Vehicle Identification Number (VIN) to: 5A999999
• Special Purpose Vehicle: not for armoured vehicles
• Fitting Position: Rear Axle
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 11.9
• Minimum thickness [mm]: 10.4
• Brake Disc Type: solid
• Number of Holes: 5
• Surface: Coated
• Bolt Hole Circle Ø [mm]: 120
• Height [mm]: 74.9
• Centering Diameter [mm]: 79
• Test Mark: E1 90R-02C0248/1157
• Rim Hole Number: 5

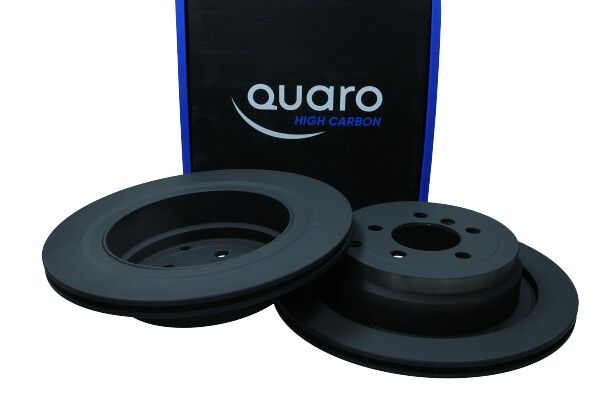

• Name: Piduriketas
• Manufacturer: QUARO

• Vehicle Identification Number (VIN) to: 5A999999
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Surface: Coated
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 12
• Height [mm]: 75
• Rim Hole Number: 5
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Minimum thickness [mm]: 10.4
• Weight [kg]: 8.8
• Hole Arrangement/Number: 7/5
• Manufacturer: ZIMMERMANN
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) to: 5A999999
• Construction Year from: 06.2005
• paired article number: 571918J
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Outer Diameter [mm]: 304
• Brake Disc Thickness [mm]: 12.6
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 62.7
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 70
• Number of Holes: 5
• Quantity Unit: Set
• Surface: Coated
• Test Mark: R90 Homologated
• Version: JC
• Weight [kg]: 13.63
• Minimum thickness [mm]: 11.7
• Tightening Torque [Nm]: 140
• Packing Type: Carton
• Packaging length [cm]: 33
• Packaging width [cm]: 33
• Packaging height [cm]: 12
• Manufacturer: JURID

• Vehicle Identification Number (VIN) from: 6A000001
• Special Purpose Vehicle: not for armoured vehicles
• Fitting Position: Rear Axle
• Brake Disc Type: Externally Vented
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 20
• Height [mm]: 74.9
• Minimum thickness [mm]: 17
• Surface: Coated
• Inner Diameter [mm]: 210.1
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Number of Holes: 5
• Wheel Bolt Bore Diameter [mm]: 16.6
• Weight [kg]: 9.2
• Assy./disassy. by qualified personnel required!:
• Name: HE 8DD355115291
• Manufacturer: HELLA PAGID

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) from: 6A000001
• Braking System: for vehicles with a standard brake system
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 20
• Minimum thickness [mm]: 17
• Height [mm]: 74.8
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Hub Diameter [mm]: 209
• Weight [kg]: 9.28
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) from: 3A129290
• Special Purpose Vehicle: not for armoured vehicles
• Brake Disc Type: solid
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10.4
• Number of Holes: 5
• Height [mm]: 74.8
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Thread Size: 16,7
• Colour: black
• Surface: painted
• Machining: High-carbon
• Manufacturer: TRW

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Front Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) to: 5A999999
• Brake Disc Type: Vented
• Number of Holes: 5
• Test Mark: E1 90R-02C0074/1612
• Surface: Coated
• Outer Diameter [mm]: 344
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 28.4
• Centering Diameter [mm]: 79
• Height [mm]: 75.8
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG9008C
• Quantity per packing unit: 2

• Vehicle Identification Number (VIN) from: *********6A000001
• Pidurikettajämedus [mm]: 30
• Veljeaukude hulk: 5
• Kinnitusaukude hulk: 1
• Jämedus/Tugevus (mm): 76
• Välisläbimõõt [mm]: 344
• Ava Ø (mm): 120
• Pealispind: kaetud
• Piduriketta liik: sisemine õhutus
• Installatsiooni pool: Esisild
• Miinimumjämedus (mm): 27
• Tsentri läbimõõt (mm): 79
• Kaal (kg): 12,02
• Hooldusinfot jälgida:
• Manufacturer: FEBI

Üldine informatsioon: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) from: 6A000001
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 20
• Number of Holes: 5
• Height [mm]: 75
• Centering Diameter [mm]: 79
• Outer Diameter [mm]: 354
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 17
• Tightening Torque [Nm]: 140
• Manufacturer: BREMBO
• Name: BR 09.9373.21

• Engine Code: AJ 4.4
• Construction Year from: 05.2005
• Construction Year to: 08.2009
• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) from: 3A129290
• Vehicle Identification Number (VIN) to: 5A999999
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10.4
• Height [mm]: 74.8
• Bolt Hole Circle Ø [mm]: 120
• Brake Disc Type: solid
• Centering Diameter [mm]: 79
• Number of Holes: 5
• Surface: Coated
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 16.7
• Manufacturer: BOSCH

• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) from: 3A129290
• Vehicle Identification Number (VIN) to: 5A999999
• Braking System: for vehicles with a standard brake system
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10.4
• Height [mm]: 75
• Rim Hole Number: 5
• Brake Disc Type: solid
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Hub Diameter [mm]: 224
• Weight [kg]: 8.8
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Front Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) to: 5A999999
• Outer Diameter [mm]: 344
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 28.4
• Height [mm]: 76
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Hub Diameter [mm]: 176
• Weight [kg]: 11.87
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Vehicle Identification Number (VIN) from: 6A000001
• Special Purpose Vehicle: not for armoured vehicles
• Fitting Position: Rear Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 20
• Outer Diameter [mm]: 354
• Machining: High-carbon
• Name: Piduriketas
• Manufacturer: QUARO

• Vehicle Identification Number (VIN) to: *********5A999999
• Brake Disc Thickness [mm]: 30
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 76
• Outer Diameter [mm]: 344
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 28.4
• Centering Diameter [mm]: 79
• Weight [kg]: 12.445
• Observe service information:
• Manufacturer: BLUEPRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) from: 6A000001
• Brake Disc Type: Externally Vented
• Machining: High-carbon
• Surface: Coated
• Outer Diameter [mm]: 352
• Brake Disc Thickness [mm]: 20
• Height [mm]: 75
• Rim Hole Number: 5
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Minimum thickness [mm]: 17
• Weight [kg]: 9.2
• Hole Arrangement/Number: 7/5
• Manufacturer: ZIMMERMANN

• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) from: 6A000001
• Special Purpose Vehicle: not for armoured vehicles
• Brake Disc Type: Externally Vented
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 20
• Height [mm]: 74.9
• Minimum thickness [mm]: 17
• Surface: Coated
• Inner Diameter [mm]: 210.1
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Hole Arrangement/Number: 05/07
• Wheel Bolt Bore Diameter [mm]: 16.6
• Packaging length [cm]: 37.3
• Packaging width [cm]: 37.3
• Packaging height [cm]: 10.5
• Weight [kg]: 9.2
• Manufacturer: TEXTAR
• Quantity per packing unit: 2

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Engine Code: AJ 4.4
• Construction Year from: 05.2005
• Construction Year to: 08.2009
• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) from: 6A000001
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 20
• Minimum thickness [mm]: 17
• Height [mm]: 74.8
• Bolt Hole Circle Ø [mm]: 120
• Brake Disc Type: Vented
• Centering Diameter [mm]: 79
• Number of Holes: 5
• Surface: Coated
• Machining: Alloyed/High-carbon
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 16.7
• Manufacturer: BOSCH

• Fitting Position: Rear Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 20
• Minimum thickness [mm]: 17
• Number of Holes: 5
• Height [mm]: 74.8
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Thread Size: 16,7
• Colour: black
• Surface: painted
• Machining: High-carbon
• Name: PIDURIKETAS
• Manufacturer: TRW
• Quality class: Q

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Rear Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) to: 5A999999
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Number of Holes: 5
• Height [mm]: 75
• Centering Diameter [mm]: 79
• Outer Diameter [mm]: 354
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 10.4
• Tightening Torque [Nm]: 140
• Manufacturer: BREMBO
• Name: BR 08.8554.21
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) from: 6A000001
• Outer Diameter [mm]: 344
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 27
• Height [mm]: 76
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Hub Diameter [mm]: 176
• Weight [kg]: 12.02
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Front Axle
• Special Purpose Vehicle: not for armoured vehicles
• Brake Disc Type: internally vented
• Outer Diameter [mm]: 344
• Brake Disc Thickness [mm]: 30
• Height [mm]: 76
• Minimum thickness [mm]: 27
• Surface: Coated
• Inner Diameter [mm]: 172
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Hole Arrangement/Number: 05/06
• Wheel Bolt Bore Diameter [mm]: 16.6
• Packaging length [cm]: 35.8
• Packaging width [cm]: 35.8
• Packaging height [cm]: 10.5
• Weight [kg]: 12
• Manufacturer: TEXTAR TARCZE HAMULCOWE
• Quantity per packing unit: 2

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Front Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) from: 6A000001
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 30
• Number of Holes: 5
• Height [mm]: 76
• Centering Diameter [mm]: 79
• Outer Diameter [mm]: 344
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 27
• Tightening Torque [Nm]: 140
• Manufacturer: BREMBO
• Name: BR 09.9374.21
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Special Purpose Vehicle: not for armoured vehicles
• Brake Disc Type: internally vented
• Outer Diameter [mm]: 360
• Brake Disc Thickness [mm]: 30
• Height [mm]: 81
• Minimum thickness [mm]: 27
• Surface: Coated
• Inner Diameter [mm]: 175
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Hole Arrangement/Number: 05/06
• Wheel Bolt Bore Diameter [mm]: 16.6
• Packaging length [cm]: 37.3
• Packaging width [cm]: 37.3
• Packaging height [cm]: 10.5
• Weight [kg]: 12.1
• Name: PIDURIKETAS
• Manufacturer: TEX
• Quantity per packing unit: 2

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Vehicle Identification Number (VIN) from: 6A000001
• Special Purpose Vehicle: not for armoured vehicles
• Fitting Position: Rear Axle
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 20
• Minimum thickness [mm]: 17
• Brake Disc Type: Vented
• Machining: Alloyed/High-carbon
• Surface: Coated
• Number of Holes: 5
• MAPP code available:
• Bolt Hole Circle Ø [mm]: 120
• Height [mm]: 74.9
• Centering Diameter [mm]: 79
• Inner Diameter [mm]: 210
• Bore Diameter [mm]: 16.6
• Test Mark: E1 90R-02C0234/1322
• Name: Piduriketas
• Manufacturer: ATE
• Quantity per packing unit: 2
• Quality class: Q

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Number of Holes: 5
• Outer Diameter [mm]: 344
• Centering Diameter [mm]: 79
• Height [mm]: 76
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 27
• Bolt Hole Circle Ø [mm]: 120
• Colour: black
• Surface: painted
• Test Mark: E1 90R-02 C0176/0661
• Manufacturer: TRW
• Quality class: Q
• Name: Brake discs

SVHC: No information available, please contact the manufacturer!

• Vehicle Identification Number (VIN) from: 6A000001
• Special Purpose Vehicle: not for armoured vehicles
• Fitting Position: Front Axle
• Outer Diameter [mm]: 344
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 27
• Brake Disc Type: Vented
• Surface: Coated
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 120
• Height [mm]: 76
• Centering Diameter [mm]: 79
• Inner Diameter [mm]: 172
• Bore Diameter [mm]: 16.6
• MAPP code available:
• Test Mark: E1 90R-02C0115/0764
• Name: PIDURIKETAS
• Manufacturer: ATE
• Quantity per packing unit: 2
• Quality class: Q

• Vehicle Identification Number (VIN) to: *********5A999999
• Brake Disc Thickness [mm]: 30
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 75.8
• Outer Diameter [mm]: 344
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 28.4
• Centering Diameter [mm]: 79
• Weight [kg]: 11.87
• Observe service information:
• Manufacturer: FEBI

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Vehicle Identification Number (VIN) from: 6A000001
• Construction Year to: 06.2005
• paired article number: 571918J
• Brake Disc Type: Vented
• Outer Diameter [mm]: 354
• Brake Disc Thickness [mm]: 20
• Supplementary Article/Info 2: without bolts/screws
• Height [mm]: 75
• Centering Diameter [mm]: 79
• Number of Holes: 5
• Quantity Unit: Piece
• Surface: Coated
• Version: JC
• Weight [kg]: 19.04
• Minimum thickness [mm]: 17
• Tightening Torque [Nm]: 140
• Packing Type: Carton
• Packaging length [cm]: 36
• Packaging width [cm]: 36
• Packaging height [cm]: 6
• Manufacturer: JURID

• Fitting Position: Front Axle
• Special Purpose Vehicle: not for armoured vehicles
• Vehicle Identification Number (VIN) to: 5A999999
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 30
• Number of Holes: 5
• Height [mm]: 76
• Centering Diameter [mm]: 79
• Outer Diameter [mm]: 344
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 28.4
• Tightening Torque [Nm]: 140
• Manufacturer: BREMBO
• Name: BR 09.8555.21
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Special Purpose Vehicle: not for armoured vehicles
• Brake Disc Type: Vented
• Outer Diameter [mm]: 344
• Brake Disc Thickness [mm]: 29.9
• Minimum thickness [mm]: 28.4
• Height [mm]: 75.9
• Number of Holes: 5
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Thread Size: 16,6
• Machining: High-carbon
• Colour: black
• Surface: painted
• Test Mark: E1 90R-02 C0176/0661
• Manufacturer: TRW
• Quality class: Q
• Name: Brake discs

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Front Axle
• Brake Disc Type: internally vented
• Machining: High-carbon
• Surface: Coated
• Outer Diameter [mm]: 360
• Brake Disc Thickness [mm]: 30
• Height [mm]: 81
• Rim Hole Number: 5
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Test Mark: ECE R90 APPROVED
• Minimum thickness [mm]: 27
• Weight [kg]: 12.3
• Hole Arrangement/Number: 6/5
• Manufacturer: ZIMMERMANN
• Quantity per packing unit: 2

• Engine Code: AJ 4.4
• Construction Year from: 05.2005
• Construction Year to: 08.2009
• Fitting Position: Front Axle
• Outer Diameter [mm]: 344
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 27
• Height [mm]: 76
• Bolt Hole Circle Ø [mm]: 120
• Brake Disc Type: Vented
• Centering Diameter [mm]: 79
• Number of Holes: 5
• Surface: Coated
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 16.7
• Manufacturer: BOSCH

• Fitting Position: Front Axle
• Special Purpose Vehicle: not for armoured vehicles
• Brake Disc Type: internally vented
• Outer Diameter [mm]: 360
• Brake Disc Thickness [mm]: 30
• Height [mm]: 81
• Minimum thickness [mm]: 27
• Machining: High-carbon
• Surface: Coated
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Hole Arrangement/Number: 05/06
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Weight [kg]: 12.1
• Assy./disassy. by qualified personnel required!:
• Name: HE 8DD355128981
• Manufacturer: HELLA PAGID

• Vehicle Identification Number (VIN) to: 5A999999
• Special Purpose Vehicle: not for armoured vehicles
• Fitting Position: Front Axle
• Outer Diameter [mm]: 344
• Brake Disc Thickness [mm]: 29.9
• Minimum thickness [mm]: 28.4
• Brake Disc Type: Vented
• Machining: High-carbon
• Surface: Coated
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 120
• Height [mm]: 75.9
• Centering Diameter [mm]: 79
• Inner Diameter [mm]: 172.8
• Bore Diameter [mm]: 16.6
• MAPP code available:
• Test Mark: E1 90R-02C0115/0767
• Manufacturer: ATE
