• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 11
• Number of Holes: 5
• Surface: Coated
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Number of Holes: 5
• Surface: Coated
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Number of Holes: 5
• Surface: Coated
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• Suspension: for vehicles with M technology
• Braking System: for vehicles with Performance brakes
• Brake Caliper Colour: blue
• Fitting Position: Rear Axle
• Brake Disc Type: slotted/perforated
• Outer Diameter [mm]: 345
• Brake Disc Thickness [mm]: 24
• Number of Holes: 5
• Surface: Coated
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• Fitting Position: Rear Axle
• Braking System: for vehicles without Performance brakes
• Minimum thickness [mm]: 9.4
• Brake Disc Type: solid
• Bore Diameter [mm]: 16.5
• Brake Disc Thickness [mm]: 11
• Bolt Hole Circle Ø [mm]: 120
• Number of Holes: 5
• Inner Diameter [mm]: 160.8
• Height [mm]: 66
• Centering Diameter [mm]: 75
• Outer Diameter [mm]: 290
• Manufacturer: DENCKERMANN FILTRY
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Braking System: for vehicles without Performance brakes
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Required quantity: 2
• Replace in pairs only:
• Height [mm]: 73.3
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Number of Holes: 5
• Test Mark: ECE R90
• Assy./disassy. by qualified personnel required!:
• Manufacturer: ABAKUS

General Information: The following information is for general and informational purposes only and does not constitute warranty terms. Warranty terms and conditions are available from our dealers and in our general terms and conditions of sale. Abakus spare/repair parts are intended only for vehicle repairs in order to restore their original functionality. Abakus spare/repair parts are used or sold to users only for the purpose of repairing vehicles to restore their original look and functionality and are not original/genuine/OE/OEM/OES replacement parts. These items do not originate from the vehicle manufacturer and may be the subject of a design not owned by Abakus and the manufacturer of this spare part. They may only be used for repairs to restore the intended vehicle to its original appearance. Our products are delivered without instruction of installation. Installation of our product may only be carried out by trained specialist technicians in specific car repairs. Products supplied by us are exclusively intended for proper and appropriate use. The warranty may become invalid in the event of: improper installation or repair, unsuitable application or use, installation or repair made outside specialist car workshops. Warranty claims are lost if the vehicle is modified and used for motor sports, tuning or similar events (except our tuning parts which are described in TecDoc and on our price list). Warranty application should include complete documentation among others: chassis no., first registration, vehicle mileage, information about LPG installation, fault memory log, pictures, our QC (quality check) code, installation invoice, contact details of the car repair workshop performing the replacement or repair. Warranty application are available in our Client Panel system. Complaints may require supplementing data such as error memory logs. Incomplete documentation may result in rejection of the claim. Any damage caused during transport is not considered quality damage and will be considered on an individual basis. The product is intended for use within the performance limits specified by the manufacturer and should only be used by qualified personnel who have been trained to operate this product. Before each use, the product should be checked for damage or fixing of its parts and not used if any defects or loose parts are found. Failure to follow the manufacturer's guidelines could result in potential product damage or even injury. Wear appropriate protective clothing if necessary when working with the product.

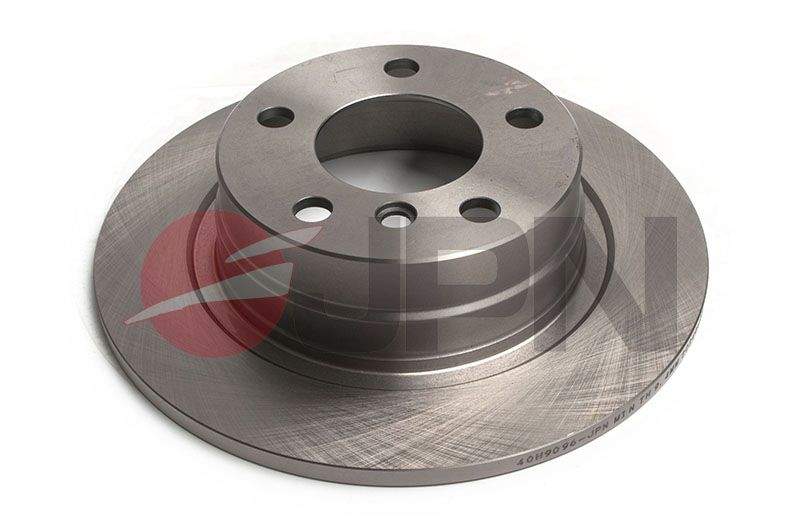

• Fitting Position: Rear Axle
• Vehicle Equipment: for vehicles without sports package
• Brake Disc Type: solid
• Rim Hole Number: 5
• Height [mm]: 66
• Brake Disc Thickness [mm]: 11
• Outer Diameter [mm]: 290
• Bolt Hole Circle Ø [mm]: 120
• Hub Diameter [mm]: 75
• Manufacturer: JPN

• Fitting Position: Rear Axle
• Braking System: for vehicles without Performance brakes
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 11
• Required quantity: 2
• Replace in pairs only:
• Height [mm]: 66
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 75
• Number of Holes: 5
• Test Mark: ECE R90
• Assy./disassy. by qualified personnel required!:
• Manufacturer: ABAKUS LORO

General Information: The following information is for general and informational purposes only and does not constitute warranty terms. Warranty terms and conditions are available from our dealers and in our general terms and conditions of sale. Abakus spare/repair parts are intended only for vehicle repairs in order to restore their original functionality. Abakus spare/repair parts are used or sold to users only for the purpose of repairing vehicles to restore their original look and functionality and are not original/genuine/OE/OEM/OES replacement parts. These items do not originate from the vehicle manufacturer and may be the subject of a design not owned by Abakus and the manufacturer of this spare part. They may only be used for repairs to restore the intended vehicle to its original appearance. Our products are delivered without instruction of installation. Installation of our product may only be carried out by trained specialist technicians in specific car repairs. Products supplied by us are exclusively intended for proper and appropriate use. The warranty may become invalid in the event of: improper installation or repair, unsuitable application or use, installation or repair made outside specialist car workshops. Warranty claims are lost if the vehicle is modified and used for motor sports, tuning or similar events (except our tuning parts which are described in TecDoc and on our price list). Warranty application should include complete documentation among others: chassis no., first registration, vehicle mileage, information about LPG installation, fault memory log, pictures, our QC (quality check) code, installation invoice, contact details of the car repair workshop performing the replacement or repair. Warranty application are available in our Client Panel system. Complaints may require supplementing data such as error memory logs. Incomplete documentation may result in rejection of the claim. Any damage caused during transport is not considered quality damage and will be considered on an individual basis. The product is intended for use within the performance limits specified by the manufacturer and should only be used by qualified personnel who have been trained to operate this product. Before each use, the product should be checked for damage or fixing of its parts and not used if any defects or loose parts are found. Failure to follow the manufacturer's guidelines could result in potential product damage or even injury. Wear appropriate protective clothing if necessary when working with the product.

• Braking System: for vehicles without Performance brakes
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 22
• Bolt Hole Circle Ø [mm]: 120
• Number of Holes: 5
• Height [mm]: 73
• Centering Diameter [mm]: 79
• Surface: Coated
• Outer Diameter [mm]: 284
• Manufacturer: KAMOKA
• Quantity per packing unit: 2

• Braking System: for vehicles without Performance brakes
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 11
• Bolt Hole Circle Ø [mm]: 120
• Number of Holes: 5
• Height [mm]: 66
• Centering Diameter [mm]: 75
• Surface: Coated
• Outer Diameter [mm]: 290
• Manufacturer: KAMOKA

• Fitting Position: Front Axle
• Braking System: for vehicles without Performance brakes
• Minimum thickness [mm]: 20.4
• Brake Disc Type: Vented
• Bore Diameter [mm]: 16.6
• Brake Disc Thickness [mm]: 22
• Bolt Hole Circle Ø [mm]: 120
• Number of Holes: 5
• Inner Diameter [mm]: 151.5
• Height [mm]: 73.3
• Centering Diameter [mm]: 79
• Outer Diameter [mm]: 284
• Manufacturer: DENCKERMANN FILTRY
• Quantity per packing unit: 2

• Brake Disc Thickness [mm]: 11
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 66
• Outer Diameter [mm]: 290
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 9.4
• Centering Diameter [mm]: 75
• Weight [kg]: 4.85
• Observe service information:
• Manufacturer: FEBI BILSTEIN
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Vehicle Equipment: for vehicles without sports package
• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Quantity per packing unit: 2
• Height [mm]: 66.2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 11
• Minimum thickness [mm]: 9.4
• Number of bores: 1
• Outer Diameter [mm]: 290
• Number of Holes: 5
• Centering Diameter [mm]: 75
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Name: SK VKBD90107S2
• Manufacturer: SKF

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Number of Holes: 5
• Test Mark: E4 90R-02C0703/2621
• Surface: Coated
• Machining: High-carbon
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 11
• Minimum thickness [mm]: 9.4
• Centering Diameter [mm]: 75
• Height [mm]: 66.2
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG4649C

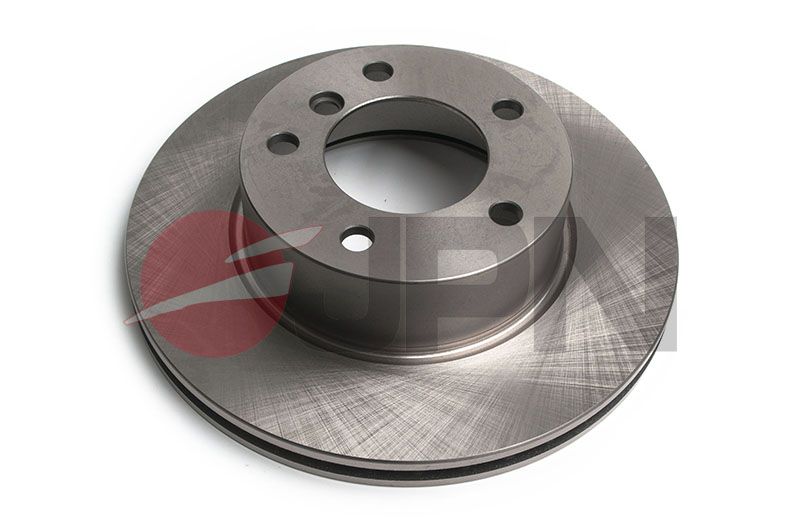

• Fitting Position: Front Axle
• Vehicle Equipment: for vehicles without sports package
• Brake Disc Type: Vented
• Rim Hole Number: 5
• Height [mm]: 73.3
• Brake Disc Thickness [mm]: 22
• Outer Diameter [mm]: 284
• Bolt Hole Circle Ø [mm]: 120
• Hub Diameter [mm]: 79
• Manufacturer: JPN

• Brake Disc Thickness [mm]: 11
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 66
• Outer Diameter [mm]: 290
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 9.4
• Centering Diameter [mm]: 75
• Weight [kg]: 4.85
• Name: SW 20 93 9113
• Manufacturer: SWAG

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Braking System: for vehicles without M-sport brakes
• not for equipment code: 02NH
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Number of Holes: 5
• Outer Diameter [mm]: 290
• Centering Diameter [mm]: 75
• Height [mm]: 66.2
• Brake Disc Thickness [mm]: 11
• Minimum thickness [mm]: 9.4
• Bolt Hole Circle Ø [mm]: 120
• Drum diameter [mm]: 160
• Thread Size: 16.8
• Colour: black
• Surface: painted
• Test Mark: E190R-02C0204/0523
• Manufacturer: TRW
• Quality class: Q
• Name: Brake discs

SVHC: No information available, please contact the manufacturer!

• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Quantity per packing unit: 2
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 22
• Outer Diameter [mm]: 284
• Height [mm]: 73.2
• Number of Holes: 5
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: painted
• Weight [kg]: 6.6
• Thread Size: 14,5
• Minimum thickness [mm]: 20.4
• Manufacturer: TOMEX C

• Construction Year to: 05.2015
• Fitting Position: Rear Axle
• Braking System: for vehicles without Performance brakes
• Vehicle Equipment: for vehicles without sports package
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 11
• Minimum thickness [mm]: 9.4
• Height [mm]: 66.3
• Bolt Hole Circle Ø [mm]: 120
• Brake Disc Type: solid
• Centering Diameter [mm]: 75
• Number of Holes: 5
• Surface: Coated
• Machining: High-carbon
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 16.7
• Manufacturer: BOSCH
• Quantity per packing unit: 2

• Brake Disc Thickness [mm]: 22
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 73
• Outer Diameter [mm]: 284
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 20.4
• Centering Diameter [mm]: 79
• Weight [kg]: 6.35
• Observe service information:
• Manufacturer: FEBI BILSTEIN
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• Vehicle Equipment: for vehicles without sports package
• Quantity per packing unit: 2
• Height [mm]: 73.2
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 20.4
• Number of bores: 1
• Outer Diameter [mm]: 284
• Number of Holes: 5
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Manufacturer: SKF TARCZE HAM

• Fitting Position: Front Axle
• Braking System: for vehicles with a standard brake system
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Number of Holes: 5
• Test Mark: E4 90R-02C0703/3147
• Surface: Coated
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 20.4
• Centering Diameter [mm]: 79
• Height [mm]: 73
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG3899C

• Fitting Position: Rear Axle
• Braking System: for vehicles with a standard brake system
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 11
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 66
• Centering Diameter [mm]: 75
• Outer Diameter [mm]: 290
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 9.4
• Manufacturer: BREMBO
• Name: BR 08.C115.11
• Quality class: Q

• Brake Disc Thickness [mm]: 11
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 66
• Outer Diameter [mm]: 290
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 9.4
• Centering Diameter [mm]: 75
• Weight [kg]: 4.85
• Observe service information:
• Manufacturer: BLUE PRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Quantity per packing unit: 2
• Height [mm]: 73
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 20.4
• Number of bores: 1
• Outer Diameter [mm]: 284
• Number of Holes: 5
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Name: SK VKBD80089V2
• Manufacturer: SKF

• Fitting Position: Rear Axle
• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 11
• Height [mm]: 66.3
• Minimum thickness [mm]: 9.4
• Surface: Coated
• Inner Diameter [mm]: 160.8
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 75
• Hole Arrangement/Number: 05/06
• Wheel Bolt Bore Diameter [mm]: 16.7
• Packaging length [cm]: 30.8
• Packaging width [cm]: 30.8
• Packaging height [cm]: 16
• Weight [kg]: 5
• Manufacturer: TEXTAR TARCZE HAMULCOWE
• Quality class: Q
• Name: Brake discs

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Rear Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 20
• Outer Diameter [mm]: 300
• Weight [kg]: 6.426
• Height [mm]: 66
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 75
• Surface: Coated
• Minimum thickness [mm]: 18.4
• Bore Diameter up to [mm]: 14.7
• Name: ALT 127994FCAL
• Manufacturer: ALTE AUTOMOTIVE

• Braking System: for vehicles without M-sport brakes
• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 11
• Minimum thickness [mm]: 9.4
• Brake Disc Type: solid
• Machining: High-carbon
• Surface: Coated
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 120
• Height [mm]: 66
• Centering Diameter [mm]: 75
• Inner Diameter [mm]: 160.8
• Bore Diameter [mm]: 16.5
• Supplementary Article/Info 2: with bolts/screws
• MAPP code available:
• Test Mark: E1 90R-02C0248/0739
• Manufacturer: ATE
• Quality class: Q
• Name: Brake discs

• Brake Disc Thickness [mm]: 22
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 73
• Outer Diameter [mm]: 284
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 20.4
• Centering Diameter [mm]: 79
• Weight [kg]: 6.35
• Name: SW 20 93 9112
• Manufacturer: SWAG

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Brake Disc Type: solid
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 11
• Height [mm]: 66.3
• Minimum thickness [mm]: 9.4
• Machining: High-carbon
• Surface: Coated
• Inner Diameter [mm]: 160.8
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 75
• Hole Arrangement/Number: 05/06
• Wheel Bolt Bore Diameter [mm]: 16.7
• Weight [kg]: 5
• Assy./disassy. by qualified personnel required!:
• Name: HE 8DD355129731
• Manufacturer: HELLA PAGID

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Front Axle
• Braking System: for vehicles with a standard brake system
• Quantity per packing unit: 2
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 20.4
• Height [mm]: 73.3
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Hub Diameter [mm]: 162
• Weight [kg]: 6.44
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Rim Hole Number: 5
• Height [mm]: 73.5
• Brake Disc Thickness [mm]: 30
• Outer Diameter [mm]: 340
• Hub Diameter [mm]: 172
• Manufacturer: JPN

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Machining: High-carbon
• Surface: Coated
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 11
• Height [mm]: 66
• Rim Hole Number: 5
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 75
• Test Mark: ECE R90 APPROVED
• Minimum thickness [mm]: 9.4
• Weight [kg]: 4.9
• Hole Arrangement/Number: 6/5
• Manufacturer: ZIMMERMANN
• Quantity per packing unit: 2

• Braking System: for vehicles with Performance brakes
• Fitting Position: Rear Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 24
• Bolt Hole Circle Ø [mm]: 120
• Number of Holes: 5
• Height [mm]: 66
• Centering Diameter [mm]: 75
• Surface: Coated
• Outer Diameter [mm]: 345
• Manufacturer: KAMOKA
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• paired article number: 573401J
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Outer Diameter [mm]: 290
• Brake Disc Thickness [mm]: 11
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 66.2
• Centering Diameter [mm]: 75
• Number of Holes: 5
• Quantity Unit: Set
• Surface: Coated
• Test Mark: R90 Homologated
• Version: JC
• Weight [kg]: 10.8
• Bore Diameter [mm]: 75
• Minimum thickness [mm]: 9.4
• Packing Type: Carton
• Packaging length [cm]: 30
• Packaging width [cm]: 30
• Packaging height [cm]: 16
• Manufacturer: JURID

• Brake Disc Thickness [mm]: 22
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 73
• Outer Diameter [mm]: 284
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 20.4
• Centering Diameter [mm]: 79
• Weight [kg]: 6.35
• Observe service information:
• Manufacturer: BLUE PRINT

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• Braking System: for vehicles without M-sport brakes
• not for equipment code: 02NH
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Number of Holes: 5
• Outer Diameter [mm]: 284
• Centering Diameter [mm]: 79
• Height [mm]: 73.3
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 20.4
• Bolt Hole Circle Ø [mm]: 120
• Colour: black
• Surface: painted
• Thread Size: 16.7
• Test Mark: E1 90R-02 C0176/0695
• Manufacturer: TRW

SVHC: No information available, please contact the manufacturer!

• Construction Year to: 05.2015
• Fitting Position: Front Axle
• Braking System: for vehicles without Performance brakes
• Vehicle Equipment: for vehicles without sports package
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 20.4
• Height [mm]: 73.1
• Bolt Hole Circle Ø [mm]: 120
• Brake Disc Type: Vented
• Centering Diameter [mm]: 79
• Number of Holes: 5
• Surface: Coated
• Machining: High-carbon
• Supplementary Article/Info 2: with bolts/screws
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 16.6
• Manufacturer: BOSCH
• Quantity per packing unit: 2

• Suspension: for vehicles with M technology
• Braking System: for vehicles without Performance brakes
• Brake Caliper Colour: blue
• Fitting Position: Front Axle
• Brake Disc Type: internally vented
• Outer Diameter [mm]: 340
• Brake Disc Thickness [mm]: 30
• Number of Holes: 5
• Surface: Coated
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• Fitting Position: Front Axle
• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Quantity per packing unit: 2
• Brake Disc Type: internally vented
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Height [mm]: 73
• Minimum thickness [mm]: 20.4
• Surface: Coated
• Inner Diameter [mm]: 151.7
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Hole Arrangement/Number: 05/06
• Wheel Bolt Bore Diameter [mm]: 16.8
• Packaging length [cm]: 29.3
• Packaging width [cm]: 29.3
• Packaging height [cm]: 16.5
• Weight [kg]: 6.5
• Manufacturer: TEXTAR TARCZE HAMULCOWE

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Rim Hole Number: 5
• Height [mm]: 73.5
• Brake Disc Thickness [mm]: 30
• Outer Diameter [mm]: 340
• Hub Diameter [mm]: 172
• Manufacturer: PROFIPOWER

• Fitting Position: Front Axle
• Braking System: for vehicles with a standard brake system
• Quantity per packing unit: 2
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 22
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 73
• Centering Diameter [mm]: 79
• Outer Diameter [mm]: 284
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 20.4
• Manufacturer: BREMBO
• Name: BR 09.9750.21
• Quality class: Q

• Braking System: for vehicles without M-sport brakes
• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 20.4
• Brake Disc Type: Vented
• Machining: High-carbon
• Surface: Coated
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 120
• Height [mm]: 73.3
• Centering Diameter [mm]: 79
• Inner Diameter [mm]: 151.5
• Bore Diameter [mm]: 16.6
• Supplementary Article/Info 2: with bolts/screws
• MAPP code available:
• Test Mark: E1 90R-02C0115/0229
• Manufacturer: ATE
• Quality class: Q
• Name: Brake discs

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 24
• Outer Diameter [mm]: 312
• Weight [kg]: 9.156
• Height [mm]: 73
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Surface: Coated
• Minimum thickness [mm]: 22.4
• Bore Diameter up to [mm]: 16.5
• Name: ALT 128025FCAL
• Manufacturer: ALTE AUTOMOTIVE

• Fitting Position: Front Axle
• Brake Disc Type: two-piece brake disc, Vented
• Brake Disc Thickness [mm]: 30
• Bolt Hole Circle Ø [mm]: 120
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 73
• Machining: High-carbon
• Centering Diameter [mm]: 79
• Surface: Coated
• Outer Diameter [mm]: 340
• Manufacturer: KAMOKA
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Braking System: for vehicles with a standard brake system
• Brake Disc Type: internally vented
• Machining: High-carbon
• Surface: Coated
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Height [mm]: 73
• Rim Hole Number: 5
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Test Mark: ECE R90 APPROVED
• Minimum thickness [mm]: 20.4
• Weight [kg]: 6.3
• Hole Arrangement/Number: 6/5
• Manufacturer: ZIMMERMANN
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Suspension: for vehicles without M technology
• Braking System: for vehicles without Performance brakes
• Brake Disc Type: internally vented
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Height [mm]: 73
• Minimum thickness [mm]: 20.4
• Machining: High-carbon
• Surface: Coated
• Inner Diameter [mm]: 151.7
• Bolt Hole Circle Ø [mm]: 120
• Centering Diameter [mm]: 79
• Hole Arrangement/Number: 05/06
• Wheel Bolt Bore Diameter [mm]: 16.8
• Weight [kg]: 6.5
• Assy./disassy. by qualified personnel required!:
• Name: HE 8DD355129391
• Manufacturer: HELLA PAGID

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• Fitting Position: Front Axle
• paired article number: 573437J
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Supplementary Article/Info 2: without bolts/screws
• Height [mm]: 73
• Number of Holes: 5
• Surface: Coated
• Version: JC
• Bore Diameter [mm]: 79
• Packing Type: Carton
• Manufacturer: JURID

• Fitting Position: Rear Axle
• Braking System: for vehicles with a standard brake system
• Quantity per packing unit: 2
• Brake Disc Type: solid, Perforated
• Brake Disc Thickness [mm]: 11
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 66
• Centering Diameter [mm]: 75
• Outer Diameter [mm]: 290
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 9.6
• Manufacturer: BREMBO
• Name: BR 08.C115.1X

General Information: The specific drilling of Brembo Xtra brake discs provides a brilliant and efficient performance in any braking condition, to emphasise the driving style of true enthusiasts.

• Braking System: for vehicles without M-sport brakes
• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 284
• Brake Disc Thickness [mm]: 22
• Minimum thickness [mm]: 19.6
• Brake Disc Type: Vented
• Machining: High-carbon
• Surface: Coated
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 120
• Height [mm]: 73.3
• Centering Diameter [mm]: 79
• Inner Diameter [mm]: 151.5
• Bore Diameter [mm]: 16.6
• Supplementary Article/Info 2: with bolts/screws
• Test Mark: E1 90R-02C0858/1210
• MAPP code available:
• Manufacturer: ATE
• Quality class: Q
• Name: Brake discs

General Information: Sure Thing, ATE! The PowerDisc shows what it can do. Looks better - wears less The brake disc with a profile pays off: The cleaning effect of the continuous groove ensures more even wear of the brake disc and a marked reduction in the scoring that can occur on both brake disc and brake pads. Score-free wear even in heavy-duty use extends the life of the brake discs - and also offers better looks, particularly for wheel rims of today's modern and open style. The multipurpose groove permits visual detection of wear at a glance, without awkward, time-consuming and expensive removal or special measuring tools. If the entire groove has been worn away, the brake disc has reached its thickness limit and must be replaced. The high temperatures generated during braking result in gases between the brake disc and brake pad. These gases c onsiderably impair the braking effect (fading). The PowerDisc channels off the gases via the multifunctional groove and in so doing ensures dependable braking. This brake disc has been thought out down to the last detail : Conventional brake discs have to be cleaned before assembly in an often very expensive and time consuming process using environmentally harmful agents. Poor cleaning often causes permanent impairment of the friction between the brake pads and the brake disc. The new corrosion protection on the ATE PowerDisc, however, no longer has to be removed before assembly and so remains on the brake disc. Protected and sealed in this way, the ATE PowerDisc is less prone to rust, shortens the installation time, and helps protect the enviro nment. Many benefits - thanks to corrosion protection The ATE PowerDisc is certified for general use in Germany (ABE) - i.e. no entry in the vehicle documents is needed. That saves you time and money. Braking like the professionals The complete range Greater safety and longer life make the ATE PowerDisc a disc that could well be a big success, which you can have installed by your garage right away. And if you have any other questions to do with brakes and the ATE product range, your friendly brake expert there will only be too glad to help you. Our ATE PowerDisc has already been proven in many long-distance racing events and touring car championships. And with its outstanding braking characteristics on both dry and wet surfaces, it's the ideal choice for the New Beetle and Lupo Cups, and in the Formula König and Formula 3. Everything's in favour of the ATE PowerDisc: Water and dirt can considerably reduce the effectiveness of the brake pads. Our answer is: the innovative ATE PowerDisc, the only brake disc with a continuous multipurpose groove, which channels off water, dirt and the gases generated between the brake disc and the brake pads by high temperatures during braking, rather like the tread of a tyre does. This considerably increases your safety, reduces scoring, and extends the life of the brake disc. And besides braking so well, it looks better for a longer pe riod. The ATE PowerDisc with multipurpose groove has clear advantages: - general certification (ABE) - better response in wet conditions - shorter running-in period for the newly fitted pad and dis c - better appearance - wear detection - improved corrosion protection Technical Information: For vehicles without ABS, a PowerDisc can be used on the rea r axle only if there is one on the front axle. The General Operating Permit (ABE) for the PowerDisc applies to operation on German roads in accordance with the German Road Traffic Registration Ordinance (StVZO). Other countries may require additional type approvals for use on roads.

• Fitting Position: Front Axle
• Vehicle Equipment 2: for vehicles with M-sport package
• Outer Diameter [mm]: 340
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 28.4
• Height [mm]: 73.2
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Hub Diameter [mm]: 172
• Weight [kg]: 10.98
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Rear Axle
• Vehicle Equipment: for vehicles with sports package
• Outer Diameter [mm]: 345
• Brake Disc Thickness [mm]: 24
• Minimum thickness [mm]: 22.4
• Height [mm]: 66.3
• Rim Hole Number: 5
• Brake Disc Type: Vented
• Centering Diameter [mm]: 75
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Hub Diameter [mm]: 174
• Weight [kg]: 9.66
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Braking System: for vehicles with M-performance brakes
• Outer Diameter [mm]: 340
• Height [mm]: 73.2
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 28.4
• Number of Holes: 5
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Supplementary Article/Supplementary Info: without accessories
• Surface: Coated, painted
• Quantity Unit: Piece
• Bore Diameter 2 [mm]: 16.7
• Number of mounting bores: 1
• Fitting Position: Front Axle
• for OE number: 34116792223
• Manufacturer: JAPKO

• Vehicle type: PERFORATED ALTERNATI
• Outer Diameter [mm]: 340
• Height [mm]: 73.2
• Brake Disc Type: perforated/vented
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 28.4
• Number of Holes: 5
• Surface: painted
• Fitting Position: Front Axle
• for OE number: 34116797602
• Manufacturer: ASHIKA-TARCZE
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• Vehicle Equipment: for vehicles with sports package
• Braking System: for vehicles with M-performance brakes
• Outer Diameter [mm]: 345
• Brake Disc Thickness [mm]: 24
• Minimum thickness [mm]: 22.4
• Height [mm]: 66.3
• Rim Hole Number: 5
• Brake Disc Type: perforated/vented
• Centering Diameter [mm]: 75
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Hub Diameter [mm]: 174
• Weight [kg]: 9.96
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: ABS

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: Vented, Perforated, slotted/perforated
• Number of Holes: 5
• Test Mark: E1 90R-02C0891/1920
• Surface: Coated
• Machining: High-carbon
• Outer Diameter [mm]: 345
• Brake Disc Thickness [mm]: 24
• Minimum thickness [mm]: 22.4
• Centering Diameter [mm]: 120
• Height [mm]: 66.3
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG4834C

• Fitting Position: Front Axle
• Braking System: for vehicles with M-sport brakes
• Brake Disc Type: Vented
• Number of Holes: 5
• Test Mark: E1 90R-02C0339/1376
• Surface: Coated
• Machining: High-carbon
• Outer Diameter [mm]: 340
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 28.4
• Centering Diameter [mm]: 79
• Height [mm]: 73.2
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG9157C
• Quantity per packing unit: 2

• Brake Disc Thickness [mm]: 24
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 66.2
• Outer Diameter [mm]: 345
• Bolt Hole Circle Ø [mm]: 120
• Machining: High-carbon
• Surface: Coated
• Brake Disc Type: perforated/vented
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 22.4
• Centering Diameter [mm]: 75
• Weight [kg]: 9.77
• Observe service information:
• Manufacturer: FEBI

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• Vehicle Equipment 2: for vehicles with M-sport package
• Height [mm]: 73.2
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 28.4
• Number of bores: 1
• Outer Diameter [mm]: 340
• Number of Holes: 5
• Centering Diameter [mm]: 79
• Bolt Hole Circle Ø [mm]: 120
• Surface: Coated
• Manufacturer: SKF TARCZE HAM

• Vehicle type: PERFORATED ALTERNATI
• Outer Diameter [mm]: 340
• Height [mm]: 73.2
• Brake Disc Type: perforated/vented
• Brake Disc Thickness [mm]: 30
• Minimum thickness [mm]: 28.4
• Number of Holes: 5
• Surface: painted
• Fitting Position: Front Axle
• for OE number: 34116797602
• Manufacturer: JAPKO

• Brake Disc Thickness [mm]: 30
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 73.2
• Outer Diameter [mm]: 340
• Bolt Hole Circle Ø [mm]: 120
• Machining: High-carbon
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 28.4
• Centering Diameter [mm]: 79
• Weight [kg]: 11.51
• Observe service information:
• Manufacturer: FEBI

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Brake Disc Thickness [mm]: 24
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 66.3
• Outer Diameter [mm]: 345
• Bolt Hole Circle Ø [mm]: 120
• Machining: High-carbon
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 22.4
• Centering Diameter [mm]: 75
• Weight [kg]: 9.86
• for OE number: 34 20 6 797 605
• Observe service information:
• Manufacturer: FEBI
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
