Description
In stock
Price
(incl. VAT)
- Engine Code: M57N2D30
- Glow Plug Design: Metal glow plug
- Voltage [V]: 5
- Current Strength [A]: 10
- Resistor [Ohm]: 0.4
- Overall Length [mm]: 105.5
- Fitting Depth [mm]: 32.5
-
Thread Size: M10 x 1,
0 - Spanner Size: 10 mm
- Connector type: PIN
- Name: HOOGKNAL
- Manufacturer: NGK
-
Lisainfo: D-
POWER47 -
Additional information: D-
POWER47
-
Engine Code: M57 D30
(306D3) - Manufacturer: DENCKERMANN ELEKTRONIKA CEWKI CZUJNIKI
- Voltage [V]: 5
- Diameter [mm]: 5
- Length [mm]: 106
- Spanner Size: 10
-
Glow Plug Design: Metal glow plug,
Pencil- type Glow Plug - Fitting Depth [mm]: 32
- Manufacturer: KAMOKA
- Glow Plug Design: Metal glow plug
- Voltage [V]: 5
- Current Strength [A]: 10
- Fitting Depth [mm]: 32.5
-
Thread Size: M10 x 1,
0 - Spanner Size: 10 mm
- Connector type: PIN
- Length [mm]: 105.5
- Name: HOOGKNAL
- Manufacturer: MAX
-
Lisainfo: 66-
0042 -
Additional information: 66-
0042
- Number of circuits: 1
- Plug Type: Shrink Connector
-
Material: CuSn
(copper- tin) - Cable insulation material: Silicone
- Cable Length [mm]: 150
- Cable Cross Section [mm²]: 2.5
- Manufacturer: 3RG
- Additional information: RGI30204
- Lisainfo: RGI30204
- Voltage [V]: 5
- Connector type: PIN
-
Thread Size: M10 x 1,
0 - Resistor [Ohm]: 0.4
- Overall Length [mm]: 105.5
- Spanner Size: 10 mm
- Current Strength [A]: 10
- Manufacturer: OYODO
- Number of circuits: 1
- Supplementary Article/Supplementary Info: with squeeze connector
- Cable Length [mm]: 150
-
Name: Kaabli remondikomplekt,
hoogknal - Manufacturer: MAX
-
Lisainfo: 15-
0277 -
Additional information: 15-
0277
-
Glow Plug Design: Pencil-
type Glow Plug, after- glow capable - Thread Size: M 10
- Thread Pitch [mm]: 1
- Rated Voltage [V]: 5
- Supplementary Article/Info 2: Do not fit parts from different manufacturers!
- Manufacturer: TOPRAN
General Information: Any and all spare parts we supply are solely intended for the designated purpose as defined by us. Installation by trained personnel only. Our products are usually supplied without assembly instructions. Installation in vehicles other than those specified by us may lead to the exclusion of warranty.
- Number of circuits: 1
- Plug Type: Shrink Connector
-
Material: CuSn
(copper- tin) - Cable insulation material: Silicone
- Cable Length [mm]: 60
- Number of pins: 1
- Cable Cross Section [mm²]: 2.5
- Manufacturer: 3RG
- Fitting Depth [mm]: 32
- Length [mm]: 106.5
- External Thread Size: M10 x 1
- Spanner Size: 10
- Voltage [V]: 5
-
Glow Plug Design: after-
glow capable - Weight [kg]: 0.025
- Manufacturer: FEBI
- Lisainfo: 24094 FEBI
- Additional information: 24094 FEBI
General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
- Length [mm]: 106.5
- Fitting Depth [mm]: 32
- External Thread Size: M10 x 1
- Spanner Size: 10
- Voltage [V]: 5
-
Glow Plug Design: after-
glow capable - Weight [kg]: 0.025
- Manufacturer: FEBI BILSTEIN
General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
- Required quantity: 6
- Voltage [V]: 5
-
Thread Size: M10 x 1,
0 -
Glow Plug Design: Pencil-
type Glow Plug - Rated Voltage [V]: 5
- Manufacturer: VEMO GERMANY
General Information: In the warranty, we always make a distinction between wear parts and vehicle parts. All wear parts are subject to a reduced warranty period and a maximum mileage. Brake components such as brake disks, brake pads, etc. maximum of 1000 km (break-in period). Therefore, warranty claims for brake parts are only reviewed with an installation invoice and a record of the wheel hub run-out measurement, including photos. For brake disks and brake pads, the break-in requirements specified by the vehicle manufacturer must be observed. When replacing brakes, the chassis components must always be checked with regard to clearance and the wheel hub with regard to wobble, and the appropriate documentation must be produced. If the vehicle is no longer in its original condition due to tuning work such as wheel accessories and tracking plates, the entitlement to make warranty claims is lost due to third-party work. The same warranty claims are lost if the vehicle is used for motor sports or similar events.
- Required quantity: 6
- Quantity per packing unit: 10
- Voltage [V]: 5
- Connector type: 4 mm PIN
- Cone Pitch: 63
- Diameter [mm]: 5
-
Thread Size: M10x1,
0 - Overall Length [mm]: 106.5
- Spanner Size: 10 mm
- Current Strength [A]: 25
-
Glow Plug Design: after-
glow capable, Pencil- type Glow Plug - Packing Type: Carton
- Fitting Depth [mm]: 33
-
Version: Double Coil,
Fast Heating - Failure Moment [Nm]: 35
- Tightening torque from [Nm]: 15
- Tightening torque to [Nm]: 20
- Packaging length [cm]: 14.2
- Packaging width [cm]: 2.7
- Packaging height [cm]: 2.3
- Name: CH CH701
- Manufacturer: CHAMPION
- Fitting Depth [mm]: 32
- Length [mm]: 106.5
- External Thread Size: M10 x 1
- Spanner Size: 10
- Voltage [V]: 5
- Weight [kg]: 0.025
-
Glow Plug Design: after-
glow capable - Name: SW 20 92 4094

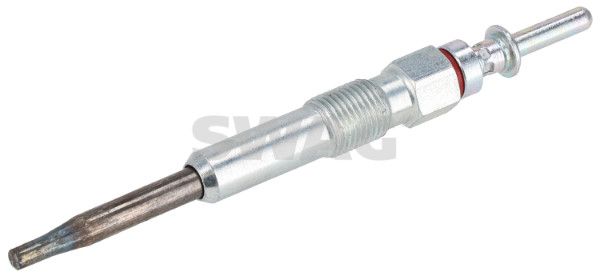

- Manufacturer: SWAG
- Lisainfo: 20 92 4094 SWA
- Additional information: 20 92 4094 SWA
General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
- Length [mm]: 106
- Fitting Depth [mm]: 32
- External Thread Size: M10 x 1
- Spanner Size: 10
- Voltage [V]: 5
-
Glow Plug Design: after-
glow capable - Weight [kg]: 0.03
- Manufacturer: BLUEPRINT
General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
- Required quantity: 6
-
Glow Plug Design: after-
glow capable, Pencil- type Glow Plug - Voltage [V]: 5
- Connector type: 4 mm PIN
- Length [mm]: 107
- Fitting Depth [mm]: 33
-
Thread Size: M10x1,
0 - Spanner Size: 10 mm
- Current Strength [A]: 25
- Cone Pitch: 63
- Tightening torque from [Nm]: 15
- Tightening torque to [Nm]: 20
- Failure Moment [Nm]: 35
- Name: HOOGKNAL
- Manufacturer: BER
- Additional information: BERGE102
- Lisainfo: BERGE102
Technical Information: Cover glow plug thread and -shaft with mounting grease, (GKF 01 - Order No. 0 890 300 034), before fitting to enable easier removal and prevent corrosion.
- angled version:
- Cable Length [mm]: 200
- Number of pins: 1
- short version:
- Length [mm]: 40
- Diameter [mm]: 4
-
Supplementary Article/Info 2: with bush housing,
with pipe -
Supplementary Article/Supplementary Info: with gasket/
seal - Cable Cross Section [mm²]: 2.5
-
Temperature range from [°C]: -
25 - Temperature range to [°C]: +140
- Cable insulation material: Silicone
- Plug housing design: Bush Housing
- SVHC: No SVHC present!
-
Name: Kaabli remondikomplekt,
hoogknal - Manufacturer: HBE
Technical Information: This repair kit can be used on almost all vehicles with a diesel engine.
- angled version:
- Cable Length [mm]: 200
- Number of pins: 1
- long version:
- Length [mm]: 60
- Diameter [mm]: 4
-
Supplementary Article/Info 2: with bush housing,
with pipe -
Supplementary Article/Supplementary Info: with gasket/
seal - Cable Cross Section [mm²]: 2.5
-
Temperature range from [°C]: -
25 - Temperature range to [°C]: +140
- Cable insulation material: Silicone
- Plug housing design: Bush Housing
- SVHC: No SVHC present!
-
Name: Kaabli remondikomplekt,
hoogknal - Manufacturer: HBE
Technical Information: This repair kit can be used on almost all vehicles with a diesel engine.
- Required quantity: 6
- Voltage [V]: 5
- Thread Size: M10x1.0
-
alternative item: -
- for OE number: 12237786869
- Connector type: Pin
- Spanner Size: 10
- Version: Instant heating
- Overall Length [mm]: 105
- Weight [g]: 27.3
- Tightening torque from [Nm]: 10
- Tightening torque to [Nm]: 12
- Manufacturer: DENSO
-
Name: DN DG-
178 - Quality class: Q
Additional information: "Tootja: DENSO
3 TOURING (E46), 10.
(kvaliteediklass: Q)"
Lisainfo: "Tootja: DENSO
3 TOURING (E46), 10.
(kvaliteediklass: Q)"
- Voltage [V]: 5
- Spanner Size: 10mm
-
Glow Plug Design: after-
glow capable, Pencil- type Glow Plug - Plug Type: Round Plug
- Assy./disassy. by qualified personnel required!:
- Name: HE 8EG008498161
- Manufacturer: HELLA
- Number of circuits: 1
- Supplementary Article/Supplementary Info: with squeeze connector
- Cable Length [mm]: 150
- Observe service information:
-
Name: Kaabli remondikomplekt,
hoogknal - Manufacturer: FEB
- Lisainfo: 107037 FEBI
- Additional information: 107037 FEBI
General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.
- Glow Plug Design: Rod Glow Plug
- Voltage [V]: 5
- Length [mm]: 106
- Thread Size: M 10 x 1
- Cone Pitch: 63
- Spanner Size: 10
- Tightening torque from [Nm]: 0
- Tightening torque to [Nm]: 15
- Connector type: PIN
- Fitting Depth [mm]: 32
- Name: HOOGKNAL
- Manufacturer: BOS
- Voltage [V]: 5
- Thread Size: M 10x1
- Manufacturer: FAE
-
Engine Code: M57 D30
(306D3) - Tightening torque from [Nm]: 10
- Connector type: PIN
- Tightening torque to [Nm]: 15
- Current Strength [A]: 8
- Glow Plug Design: Metal glow plug
- Mounting Inclination: 63
- Voltage [V]: 5
- Length 1 [mm]: 46
- Length 2 [mm]: 32
- Overall Length [mm]: 106
- Thread Size: M10X1
- Spanner Size: 10
- Heat-up Time [min]: 2
- Manufacturer: MAGNETI MARELLI
-
Glow Plug Design: Pencil-
type Glow Plug - Number of pins: 1
- long version:
- Length [mm]: 60
- angled version:
- Number of circuits: 1
- Cable Length [mm]: 150
- Cable Cross Section [mm²]: 2.5
- Cable insulation material: Silicone
- Supplementary Article/Supplementary Info: with shrink squeeze connector
-
Material: CuSn
(copper- tin) - Manufacturer: METZGER
- Lisainfo: 2324016 METZGER
- Additional information: 2324016 METZGER
-
Glow Plug Design: Pencil-
type Glow Plug - Number of pins: 1
- short version:
- Length [mm]: 40
- angled version:
- Number of circuits: 1
- Cable Length [mm]: 150
- Cable Cross Section [mm²]: 2.5
- Cable insulation material: Silicone
- Supplementary Article/Supplementary Info: with shrink squeeze connector
-
Material: CuSn
(copper- tin) - Manufacturer: METZGER
- straight version:
- Cable Length [mm]: 150
- Number of pins: 1
- Length [mm]: 45
- Cable Cross Section [mm²]: 2.5
-
Contact surface: Tin-
plated -
Supplementary Article/Info 2: with bush housing,
with pipe -
Supplementary Article/Supplementary Info: with gaskets/
seals -
Temperature range from [°C]: -
25 - Temperature range to [°C]: +140
- Cable insulation material: Silicone
- Plug housing design: Bush Housing
- SVHC: No SVHC present!
-
Name: Kaabli remondikomplekt,
hoogknal - Manufacturer: HBE
- straight version:
- Cable insulation material: Silicone
- Cable Length [mm]: 200
- Number of pins: 1
- short version:
- Length [mm]: 40
- Diameter [mm]: 4
-
Supplementary Article/Supplementary Info: with holder,
with gasket/ seal -
Supplementary Article/Info 2: with bush housing,
with pipe - Cable Cross Section [mm²]: 2.5
-
Temperature range from [°C]: -
25 - Temperature range to [°C]: +140
- Plug housing design: Bush Housing
- SVHC: No SVHC present!
-
Name: Kaabli remondikomplekt,
hoogknal - Manufacturer: HBE
Technical Information: This repair kit can be used on almost all vehicles with a diesel engine.
- Required quantity: 6
- Overall Length [mm]: 106.5
- Fitting Depth [mm]: 33
- Thread Size: M10x1
- Spanner Size: 10
- Cone Pitch: 63
- Voltage [V]: 5
- Connector type: Ø 4mm
- Tightening torque from [Nm]: 15
- Tightening torque to [Nm]: 18
- Article number of recommended accessories: 0873012
- Manufacturer: METZGER
-
Engine Code: M57 D30
(306D3) - Voltage [V]: 5
- Thread Size: M10x1
- Overall Length [mm]: 106
- Spanner Size: 10
- Tightening Torque [Nm]: 15
- Connector type: PIN
- Manufacturer: VALEO
