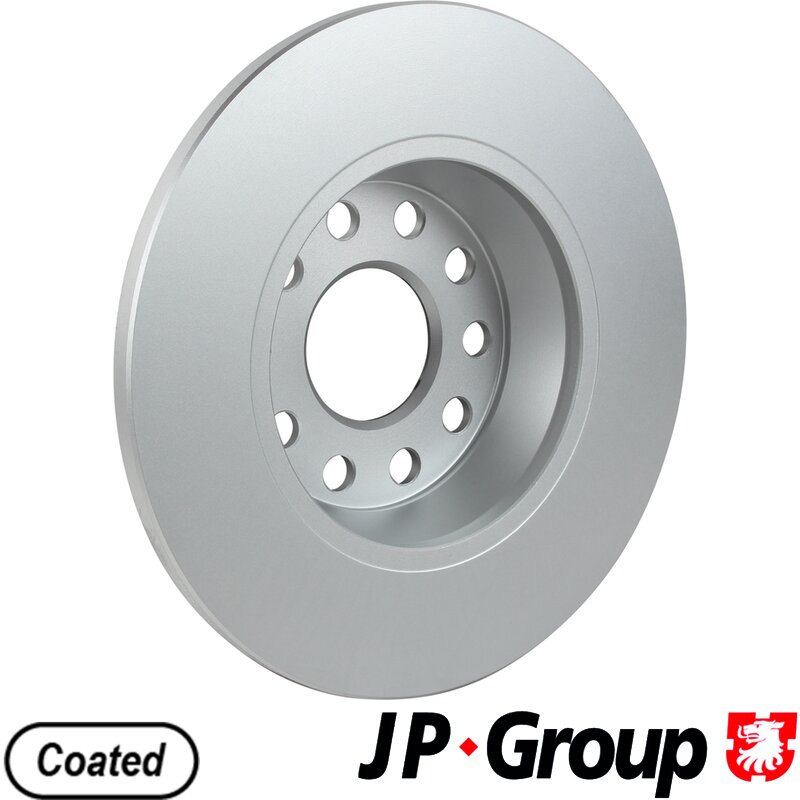

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Number of Holes: 5
• Surface: Coated
• Manufacturer: JP GROUP
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• for PR number: 1LJ, 1ZD
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Number of Holes: 5
• Surface: Coated
• Manufacturer: JP GROUP
• Lisainfo: Brake Disc
• Additional information: Brake Disc

• for PR number: 1KU
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Outer Diameter [mm]: 282
• Fitting Position: Rear Axle
• Bolt Hole Circle Ø [mm]: 112
• Height [mm]: 48.2
• Centering Diameter [mm]: 65
• Number of Holes: 9
• Surface: painted
• Minimum thickness [mm]: 10
• Name: PIDURIKETAS
• Manufacturer: MAX

• for PR number: 1KU
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Outer Diameter [mm]: 282
• Fitting Position: Rear Axle
• Bolt Hole Circle Ø [mm]: 112
• Height [mm]: 48.2
• Centering Diameter [mm]: 65
• Number of Holes: 9
• Minimum thickness [mm]: 10
• Name: PIDURIKETAS
• Manufacturer: MAX

• Fitting Position: Rear Axle
• Minimum thickness [mm]: 10
• Brake Disc Type: solid
• Bore Diameter [mm]: 15.3
• Brake Disc Thickness [mm]: 12
• Bolt Hole Circle Ø [mm]: 112
• No. of holes 2: 9
• Number of Holes: 5
• Inner Diameter [mm]: 159
• Height [mm]: 48.6
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 282

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Number of Holes: 5
• Test Mark: E1 90R-02C0250/1775
• Surface: Coated
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Centering Diameter [mm]: 65
• Height [mm]: 48.1
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG5020C
• Quality class: PJ

• for PR number: 1KU
• Brake Disc Thickness [mm]: 12
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 48.3
• Outer Diameter [mm]: 282
• Bolt Hole Circle Ø [mm]: 112
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 10
• Centering Diameter [mm]: 65
• Weight [kg]: 4.76
• Observe service information:
• Manufacturer: FEBI BILSTEIN
• Quantity per packing unit: 2
• Lisainfo: 108194 FEBI
• Additional information: 108194 FEBI

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Construction Year from: 11.2007
• Fitting Position: Rear Axle
• Vehicle Equipment: for vehicles with electric parking brake
• for PR number: 1KU
• Quantity per packing unit: 2
• Height [mm]: 48.2
• Brake Disc Type: solid
• Minimum thickness [mm]: 10
• Brake Disc Thickness [mm]: 12
• Number of Holes: 5
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 282
• Manufacturer: LPR

• Fitting Position: Rear Axle
• for PR number: 1KU
• Quantity per packing unit: 2
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Height [mm]: 48.5
• Rim Hole Number: 5
• Brake Disc Type: solid
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Surface: Coated
• Hub Diameter [mm]: 150
• Weight [kg]: 4.87
• Installation Information: Important: Observe Fitting Instructions
• Manufacturer: A.B.S.

• for PR number: 1KU
• Brake Disc Thickness [mm]: 12
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 48
• Outer Diameter [mm]: 282
• Bolt Hole Circle Ø [mm]: 112
• Surface: Coated
• Brake Disc Type: solid
• Fitting Position: Rear Axle
• Minimum thickness [mm]: 10
• Centering Diameter [mm]: 65
• Weight [kg]: 4.76
• Observe service information:
• Manufacturer: BLUEPRINT
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• for PR number: 1KU
• Fitting Position: Rear Axle
• Outer Diameter [mm]: 286
• Height [mm]: 48.5
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Wheel Bolt Bore Diameter [mm]: 15.3
• Number of Holes: 5
• Brake Disc Type: solid
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY

• for PR number: 1KU
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Height [mm]: 48.2
• Brake Disc Thickness [mm]: 12
• Thread Size: 15.3
• Minimum thickness [mm]: 10
• Outer Diameter [mm]: 282
• Number of Holes: 9
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Manufacturer: PROFIPOWER

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Outer Diameter [mm]: 282
• Weight [kg]: 4.688
• Height [mm]: 48.3
• Number of Holes: 9
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Surface: Coated
• Minimum thickness [mm]: 10
• Bore Diameter up to [mm]: 15.5
• Name: ALT 127952FCAL
• Manufacturer: ALTE AUTOMOTIVE

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Height [mm]: 48.3
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Number of bores: 1
• Outer Diameter [mm]: 282
• Number of Holes: 9
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Surface: Coated
• Name: SK VKBD90014S2
• Manufacturer: SKF

• Fitting Position: Rear Axle
• for PR number: 1KU
• Quantity per packing unit: 2
• Test Mark: ECE-R90
• Height [mm]: 48.2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Outer Diameter [mm]: 282
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 65
• Surface: painted
• Manufacturer: METELLI UKL.HAMULCOWY

• Quantity per packing unit: 2
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Outer Diameter [mm]: 282
• Height [mm]: 48.2
• Number of Holes: 9
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Surface: painted
• Weight [kg]: 9.8
• Minimum thickness [mm]: 10
• Manufacturer: TOMEX BRAKES

• for PR number: 1KU
• Quantity per packing unit: 2
• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Centering Diameter [mm]: 65
• Height [mm]: 48.3
• Minimum thickness [mm]: 10
• Rim Hole Number: 5
• Number of mounting bores: 4
• Supplementary Article/Info 2: with screw
• No. of holes 1: 1
• Test Mark: ECE-R90
• Weight [kg]: 10.07
• Manufacturer: VALEO

• for PR number: 1KU
• Fitting Position: Rear Axle
• Brake Disc Thickness [mm]: 12
• Brake Disc Type: solid, slotted/perforated
• Outer Diameter [mm]: 282
• Bolt Hole Circle Ø [mm]: 112
• Height [mm]: 48.2
• Centering Diameter [mm]: 65
• Number of Holes: 9
• Surface: painted
• Minimum thickness [mm]: 10
• Name: PIDURIKETAS
• Manufacturer: MAX

• Fitting Position: Rear Axle
• for PR number: 1KU
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Outer Diameter [mm]: 282
• Bolt Hole Circle Ø [mm]: 112
• Height [mm]: 48.2
• Centering Diameter [mm]: 65
• Minimum thickness [mm]: 10
• Thread Size: 15.3
• Number of Holes: 9
• Colour: black
• Surface: painted
• Supplementary Article/Info 2: with bolts/screws
• Test Mark: E1 90R-02 C0190/0525
• Name: PIDURIKETAS
• Manufacturer: TRW
• Quality class: Q

SVHC: No information available, please contact the manufacturer!

• Fitting Position: Rear Axle
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Brake Disc Type: solid
• Minimum thickness [mm]: 10
• Height [mm]: 48.3
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Surface: painted
• Number of Holes: 5
• Name: PIDURIKETAS
• Manufacturer: QUARO

• for PR number: 1KU
• Fitting Position: Rear Axle
• Outer Diameter [mm]: 282
• Height [mm]: 48.3
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Wheel Bolt Bore Diameter [mm]: 15.3
• Number of Holes: 5
• Brake Disc Type: solid
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY
• Lisainfo: 1155230043
• Additional information: 1155230043

• for PR number: 1LJ
• Brake Disc Type: Vented
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Fitting Position: Front Axle
• Centering Diameter [mm]: 65
• Height [mm]: 49.9
• Number of Holes: 9
• Bolt Hole Circle Ø [mm]: 112
• Minimum thickness [mm]: 22
• Name: PIDURIKETAS
• Manufacturer: MAX

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 25
• Outer Diameter [mm]: 312
• Bolt Hole Circle Ø [mm]: 112
• Manufacturer: DELLO AUTOMEGA
• Quantity per packing unit: 2

• Fitting Position: Front Axle
• Minimum thickness [mm]: 22
• Brake Disc Type: Vented
• Bore Diameter [mm]: 15.3
• Brake Disc Thickness [mm]: 25
• Bolt Hole Circle Ø [mm]: 112
• No. of holes 2: 9
• Number of Holes: 5
• Inner Diameter [mm]: 146
• Height [mm]: 49.9
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 312
• Manufacturer: DENCKERMANN HAMULCE
• Quantity per packing unit: 2

• Fitting Position: Rear Axle
• Brake Disc Type: solid
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Height [mm]: 48.3
• Minimum thickness [mm]: 10
• Surface: Coated
• Inner Diameter [mm]: 140
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Hole Arrangement/Number: 05/10
• Wheel Bolt Bore Diameter [mm]: 15.3
• Weight [kg]: 4.7
• Assy./disassy. by qualified personnel required!:
• Name: HE 8DD355112141
• Manufacturer: HELLA PAGID

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• for PR number: 1LJ
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Centering Diameter [mm]: 65
• Height [mm]: 49.9
• Number of Holes: 9
• Bolt Hole Circle Ø [mm]: 112
• Surface: painted
• Minimum thickness [mm]: 22
• Name: PIDURIKETAS
• Manufacturer: MAX
• Lisainfo: 19-1044MAX
• Additional information: 19-1044MAX

• Fitting Position: Rear Axle
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Brake Disc Type: solid
• Minimum thickness [mm]: 10
• Height [mm]: 48.3
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Surface: painted
• Machining: High-carbon
• Number of Holes: 5
• Name: Piduriketas
• Manufacturer: QUARO

• for PR number: 1KU
• Fitting Position: Rear Axle
• Outer Diameter [mm]: 282
• Height [mm]: 48.3
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Wheel Bolt Bore Diameter [mm]: 15.3
• Number of Holes: 5
• Brake Disc Type: solid
• Surface: Zink flake coated
• Supplementary Article/Info 2: with bolts/screws
• Quality: PREMIUM
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY

General Information: MEYLE-PD brake disc with high-grade finish and brillant appearance: Modern cutting-edge coating technology for long lasting anti-corrosion protection. No degreasing needed, ready-to-fit. Easy rim disassembly due to coated mounting surfaces.

• for PR number: 1LJ, 1ZD
• Block Separation:
• Brake Disc Thickness [mm]: 25
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 49.7
• Outer Diameter [mm]: 312
• Bolt Hole Circle Ø [mm]: 112
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 22
• Centering Diameter [mm]: 65
• Weight [kg]: 8.6
• Observe service information:
• Manufacturer: FEBI BILSTEIN
• Lisainfo: 24384 FEBI
• Additional information: 24384 FEBI

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• for combined PR number: 1LJ+1ZD
• Construction Year from: 01.2008
• Fitting Position: Front Axle
• Brake Disc Type: internally vented
• Height [mm]: 49.5
• Brake Disc Thickness [mm]: 25
• Outer Diameter [mm]: 312
• Number of Holes: 5
• Centering Diameter [mm]: 65
• Manufacturer: JPN

• Fitting Position: Rear Axle
• for PR number: 1KU
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Brake Disc Thickness [mm]: 12
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 48
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 282
• Surface: Coated
• Minimum thickness [mm]: 10
• Tightening Torque [Nm]: 120
• Manufacturer: BREMBO
• Name: BR 08.A202.11
• Quality class: Q

• Quantity per packing unit: 2
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 312
• Hub Diameter [mm]: 156
• Surface: Coated
• Centering Diameter [mm]: 65
• Brake Disc Thickness [mm]: 25
• Height [mm]: 49.9
• Rim Hole Number: 5
• Bolt Hole Circle Ø [mm]: 112
• Replace in pairs only:
• Manufacturer: TOPRAN

General Information: Any and all spare parts we supply are solely intended for the designated purpose as defined by us. Installation by trained personnel only. Our products are usually supplied without assembly instructions. Installation in vehicles other than those specified by us may lead to the exclusion of warranty.

• Construction Year from: 11.2007
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 25
• Bolt Hole Circle Ø [mm]: 112
• Number of Holes: 5
• Height [mm]: 50
• Centering Diameter [mm]: 65
• Surface: Coated
• Outer Diameter [mm]: 312
• Manufacturer: KAMOKA UK£ADY HAMULCOWE
• Quantity per packing unit: 2

• Fitting Position: Front Axle, Front Axle Right, Front Axle Left
• Brake Disc Thickness [mm]: 25
• Number of Holes: 9
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 312
• Brake Disc Type: Vented
• Thread Size: 15,4
• Height [mm]: 49.9
• Manufacturer: AUTO-GH

• Construction Year from: 11.2007
• Fitting Position: Front Axle
• for PR number: 1LJ
• Quantity per packing unit: 2
• Outer Diameter [mm]: 312
• Number of Holes: 5
• Height [mm]: 49.6
• Brake Disc Thickness [mm]: 25
• Centering Diameter [mm]: 65
• Minimum thickness [mm]: 22
• Brake Disc Type: internally vented
• Manufacturer: LPR

• for PR number: 1LJ, 1ZD
• Block Separation:
• Brake Disc Thickness [mm]: 25
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 50
• Outer Diameter [mm]: 312
• Bolt Hole Circle Ø [mm]: 112
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 22
• Centering Diameter [mm]: 65
• Weight [kg]: 8.6
• Observe service information:
• Manufacturer: BLUE PRINT
• Quantity per packing unit: 2

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Rear Axle
• for PR number: 1KU
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Height [mm]: 48.3
• Minimum thickness [mm]: 10
• Surface: Coated
• Inner Diameter [mm]: 140
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Hole Arrangement/Number: 05/10
• Wheel Bolt Bore Diameter [mm]: 15.3
• Packaging length [cm]: 30.8
• Packaging width [cm]: 30.8
• Packaging height [cm]: 12.7
• Weight [kg]: 4.7
• Name: PIDURIKETAS
• Manufacturer: TEX
• Lisainfo: 92140803
• Additional information: 92140803

Supplementary Article/Info 2: without wheel hub, without wheel bearing, without wheel studs

• for PR number: 1LJ, 1ZD
• Block Separation:
• Brake Disc Thickness [mm]: 25
• Rim Hole Number: 5
• Number of mounting bores: 1
• Thickness [mm]: 49.7
• Outer Diameter [mm]: 312
• Bolt Hole Circle Ø [mm]: 112
• Surface: Coated
• Brake Disc Type: internally vented
• Fitting Position: Front Axle
• Minimum thickness [mm]: 22
• Centering Diameter [mm]: 65
• Weight [kg]: 8.6
• Name: SW 30 92 4384
• Manufacturer: SWAG

General Information: These products are designed to be used as originally intended and not modified for purpose. Please ensure the products are installed by a competent individual. N.B. products are usually supplied without fitting instructions.

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: internally vented
• Machining: High-carbon
• Surface: Coated
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Height [mm]: 50
• Rim Hole Number: 5
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Test Mark: ECE R90 APPROVED
• Minimum thickness [mm]: 22
• Weight [kg]: 8.3
• Hole Arrangement/Number: 10/5
• Manufacturer: ZIMMERMANN
• Additional information: 100-3300-20
• Lisainfo: 100-3300-20

• for combined PR number: 1LJ+1ZD
• Construction Year from: 01.2008
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Height [mm]: 49.9
• Brake Disc Thickness [mm]: 25
• Thread Size: 15,4
• Minimum thickness [mm]: 22
• Outer Diameter [mm]: 312
• Number of Holes: 9
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Manufacturer: PROFIPOWER

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Number of Holes: 5
• Test Mark: E1 90R-02C0277/1198
• Surface: Coated
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 24.9
• Minimum thickness [mm]: 22
• Centering Diameter [mm]: 65
• Height [mm]: 49.6
• Manufacturer: DELPHI LOCKHEED HAMULCE
• Name: DE BG3953C
• Lisainfo: BG3953C DELPHI
• Additional information: BG3953C DELPHI

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Brake Disc Type: solid
• Number of Holes: 5
• Surface: Coated
• No. of holes 2: 9
• Bolt Hole Circle Ø [mm]: 112
• Height [mm]: 48.6
• Centering Diameter [mm]: 65
• Inner Diameter [mm]: 159
• Bore Diameter [mm]: 15.3
• Supplementary Article/Info 2: with bolts/screws
• MAPP code available:
• Test Mark: E1 90R-02C0165/0535
• Name: PIDURIKETAS
• Manufacturer: ATE
• Quality class: Q

• Fitting Position: Front Axle
• Quantity per packing unit: 2
• Brake Disc Type: Vented
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Required quantity: 2
• Replace in pairs only:
• Height [mm]: 49.9
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Number of Holes: 5
• Article number of recommended accessories: 131-07-139, 131-07-140
• Test Mark: ECE R90
• Assy./disassy. by qualified personnel required!:
• Manufacturer: ABAKUS LORO

General Information: The following information is for general and informational purposes only and does not constitute warranty terms. Warranty terms and conditions are available from our dealers and in our general terms and conditions of sale. Abakus spare/repair parts are intended only for vehicle repairs in order to restore their original functionality. Abakus spare/repair parts are used or sold to users only for the purpose of repairing vehicles to restore their original look and functionality and are not original/genuine/OE/OEM/OES replacement parts. These items do not originate from the vehicle manufacturer and may be the subject of a design not owned by Abakus and the manufacturer of this spare part. They may only be used for repairs to restore the intended vehicle to its original appearance. Our products are delivered without instruction of installation. Installation of our product may only be carried out by trained specialist technicians in specific car repairs. Products supplied by us are exclusively intended for proper and appropriate use. The warranty may become invalid in the event of: improper installation or repair, unsuitable application or use, installation or repair made outside specialist car workshops. Warranty claims are lost if the vehicle is modified and used for motor sports, tuning or similar events (except our tuning parts which are described in TecDoc and on our price list). Warranty application should include complete documentation among others: chassis no., first registration, vehicle mileage, information about LPG installation, fault memory log, pictures, our QC (quality check) code, installation invoice, contact details of the car repair workshop performing the replacement or repair. Warranty application are available in our Client Panel system. Complaints may require supplementing data such as error memory logs. Incomplete documentation may result in rejection of the claim. Any damage caused during transport is not considered quality damage and will be considered on an individual basis. The product is intended for use within the performance limits specified by the manufacturer and should only be used by qualified personnel who have been trained to operate this product. Before each use, the product should be checked for damage or fixing of its parts and not used if any defects or loose parts are found. Failure to follow the manufacturer's guidelines could result in potential product damage or even injury. Wear appropriate protective clothing if necessary when working with the product.

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 25.2
• Outer Diameter [mm]: 312
• Weight [kg]: 8.506
• Height [mm]: 49.8
• Number of Holes: 9
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Surface: Coated
• Minimum thickness [mm]: 22
• Bore Diameter up to [mm]: 15.5
• Name: ALT 127945FCAL
• Manufacturer: ALTE AUTOMOTIVE

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Brake Disc Type: solid
• Surface: Coated
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Height [mm]: 49
• Rim Hole Number: 5
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Test Mark: ECE R90 APPROVED
• Minimum thickness [mm]: 10
• Weight [kg]: 4.6
• Hole Arrangement/Number: 10/5
• Manufacturer: ZIMMERMANN

• for PR number: 1LJ
• Fitting Position: Front Axle
• Outer Diameter [mm]: 312
• Height [mm]: 49.9
• Brake Disc Thickness [mm]: 25
• Minimum thickness [mm]: 22
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Wheel Bolt Bore Diameter [mm]: 15.3
• Number of Holes: 5
• Brake Disc Type: Vented
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY

• Fitting Position: Front Axle
• Construction Year from: 01.2008
• for combined PR number: 1LJ+1ZD
• Quantity per packing unit: 2
• Test Mark: ECE-R90
• Height [mm]: 49.6
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 25
• Outer Diameter [mm]: 312
• Number of Holes: 5
• Bolt Hole Circle Ø [mm]: 65
• Surface: painted
• Manufacturer: METELLI UKL.HAMULCOWY

• Fitting Position: Front Axle
• for PR number: 1LJ, 1ZD
• Height [mm]: 49.5
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 25
• Minimum thickness [mm]: 22
• Number of bores: 5
• Outer Diameter [mm]: 312
• Number of Holes: 5
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Surface: Coated
• Manufacturer: SKF TARCZE HAM

• Fitting Position: Rear Axle
• for PR number: 1KU
• Quantity per packing unit: 2
• Brake Disc Type: solid, slotted
• Brake Disc Thickness [mm]: 12
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 48.2
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 282
• Surface: Coated
• Minimum thickness [mm]: 10
• Tightening Torque [Nm]: 120
• Manufacturer: BREMBO
• Name: BR 08.A202.75

Brief Information: For maximum performance in wet conditions, Brembo Max is the affordable grooved and painted disc for the enthusiast.

• Fitting Position: Front Axle
• for PR number: 1LJ, 1ZD, 1ZA
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Brake Disc Type: internally vented
• Minimum thickness [mm]: 22
• Height [mm]: 49.7
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Supplementary Article/Info 2: without wheel hub, without wheel studs
• Surface: painted
• Number of Holes: 5
• Name: PIDURIKETAS
• Manufacturer: QUARO

• for PR number: 1LJ, 1ZD
• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Centering Diameter [mm]: 65
• Height [mm]: 49.7
• Minimum thickness [mm]: 22
• Rim Hole Number: 9
• Number of mounting bores: 1
• Test Mark: ECE-R90
• Weight [kg]: 8.66
• Manufacturer: VALEO

Supplementary Article/Info 2: without ABS sensor ring, without integrated wheel bearing

• for PR number: 1LJ
• Fitting Position: Front Axle
• Brake Disc Type: Vented, slotted/perforated
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Centering Diameter [mm]: 65
• Height [mm]: 49.9
• Number of Holes: 9
• Bolt Hole Circle Ø [mm]: 112
• Surface: painted
• Minimum thickness [mm]: 22
• Name: PIDURIKETAS
• Manufacturer: MAX

• Fitting Position: Rear Axle
• Quantity per packing unit: 2
• Outer Diameter [mm]: 282
• Brake Disc Thickness [mm]: 12
• Minimum thickness [mm]: 10
• Brake Disc Type: solid
• Number of Holes: 5
• Surface: Coated
• No. of holes 2: 9
• Bolt Hole Circle Ø [mm]: 112
• Height [mm]: 48.6
• Centering Diameter [mm]: 65
• Inner Diameter [mm]: 159
• Bore Diameter [mm]: 15.3
• Supplementary Article/Info 2: with bolts/screws
• MAPP code available:
• Name: PIDURIKETAS
• Manufacturer: ATE

General Information: Sure Thing, ATE! The PowerDisc shows what it can do. Looks better - wears less The brake disc with a profile pays off: The cleaning effect of the continuous groove ensures more even wear of the brake disc and a marked reduction in the scoring that can occur on both brake disc and brake pads. Score-free wear even in heavy-duty use extends the life of the brake discs - and also offers better looks, particularly for wheel rims of today's modern and open style. The multipurpose groove permits visual detection of wear at a glance, without awkward, time-consuming and expensive removal or special measuring tools. If the entire groove has been worn away, the brake disc has reached its thickness limit and must be replaced. The high temperatures generated during braking result in gases between the brake disc and brake pad. These gases c onsiderably impair the braking effect (fading). The PowerDisc channels off the gases via the multifunctional groove and in so doing ensures dependable braking. This brake disc has been thought out down to the last detail : Conventional brake discs have to be cleaned before assembly in an often very expensive and time consuming process using environmentally harmful agents. Poor cleaning often causes permanent impairment of the friction between the brake pads and the brake disc. The new corrosion protection on the ATE PowerDisc, however, no longer has to be removed before assembly and so remains on the brake disc. Protected and sealed in this way, the ATE PowerDisc is less prone to rust, shortens the installation time, and helps protect the enviro nment. Many benefits - thanks to corrosion protection The ATE PowerDisc is certified for general use in Germany (ABE) - i.e. no entry in the vehicle documents is needed. That saves you time and money. Braking like the professionals The complete range Greater safety and longer life make the ATE PowerDisc a disc that could well be a big success, which you can have installed by your garage right away. And if you have any other questions to do with brakes and the ATE product range, your friendly brake expert there will only be too glad to help you. Our ATE PowerDisc has already been proven in many long-distance racing events and touring car championships. And with its outstanding braking characteristics on both dry and wet surfaces, it's the ideal choice for the New Beetle and Lupo Cups, and in the Formula König and Formula 3. Everything's in favour of the ATE PowerDisc: Water and dirt can considerably reduce the effectiveness of the brake pads. Our answer is: the innovative ATE PowerDisc, the only brake disc with a continuous multipurpose groove, which channels off water, dirt and the gases generated between the brake disc and the brake pads by high temperatures during braking, rather like the tread of a tyre does. This considerably increases your safety, reduces scoring, and extends the life of the brake disc. And besides braking so well, it looks better for a longer pe riod. The ATE PowerDisc with multipurpose groove has clear advantages: - general certification (ABE) - better response in wet conditions - shorter running-in period for the newly fitted pad and dis c - better appearance - wear detection - improved corrosion protection Technical Information: For vehicles without ABS, a PowerDisc can be used on the rea r axle only if there is one on the front axle. The General Operating Permit (ABE) for the PowerDisc applies to operation on German roads in accordance with the German Road Traffic Registration Ordinance (StVZO). Other countries may require additional type approvals for use on roads.

• Fitting Position: Front Axle
• Brake Disc Type: Vented
• Brake Disc Thickness [mm]: 25
• Height [mm]: 49.9
• Outer Diameter [mm]: 312
• Manufacturer: FAST

General Information: 5-year warranty FAST offers up to 5 years warranty on this product, throughout the entire EU. The guarantee covers manufacturing and material defects. In the event of problems, we will refund you for the part or replace it with a new one. Details and warranty restrictions can be found at fastoriginal.eu

• Fitting Position: Front Axle
• for PR number: 1ZD, 1LJ
• Quantity per packing unit: 2
• Brake Disc Type: internally vented
• Brake Disc Thickness [mm]: 25
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 50
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 312
• Machining: High-carbon
• Surface: Coated
• Minimum thickness [mm]: 22
• Tightening Torque [Nm]: 120
• Manufacturer: BREMBO
• Name: BR 09.9772.11
• Quality class: Q

• Fitting Position: Front Axle
• for PR number: 1LJ
• Brake Disc Type: Vented
• Outer Diameter [mm]: 312
• Height [mm]: 49.9
• Number of Holes: 9
• Brake Disc Thickness [mm]: 25
• Centering Diameter [mm]: 65
• Minimum thickness [mm]: 22
• Thread Size: 15,4
• Bolt Hole Circle Ø [mm]: 112
• Colour: black
• Surface: painted
• Supplementary Article/Info 2: with bolts/screws
• Test Mark: E190R-02 C0176/0613
• Name: PIDURIKETAS
• Manufacturer: TRW
• Quality class: Q

SVHC: No information available, please contact the manufacturer!

• Construction Year from: 11.2007
• Fitting Position: Front Axle
• for PR number: 1LJ, 1ZD
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Minimum thickness [mm]: 22
• Height [mm]: 49.7
• Bolt Hole Circle Ø [mm]: 112
• Brake Disc Type: Vented
• Centering Diameter [mm]: 65
• Number of Holes: 9
• Surface: Coated
• Machining: High-carbon
• Supplementary Article/Info 2: with bolts/screws
• fulfils ECE norm: ECE-R90
• Bore Diameter up to [mm]: 15.4
• Name: PIDURIKETAS
• Manufacturer: BOS

• for PR number: 1LJ
• Fitting Position: Front Axle
• Outer Diameter [mm]: 312
• Height [mm]: 49.9
• Brake Disc Thickness [mm]: 25
• Minimum thickness [mm]: 22
• Centering Diameter [mm]: 65
• Bolt Hole Circle Ø [mm]: 112
• Wheel Bolt Bore Diameter [mm]: 15.3
• Number of Holes: 5
• Brake Disc Type: Vented
• Surface: Zink flake coated
• Machining: High-carbon
• Supplementary Article/Info 2: with bolts/screws
• Quality: PREMIUM
• Required quantity: 2
• Name: PIDURIKETAS
• Manufacturer: MEY

General Information: High-carbon MEYLE-PD brake disc. Increased carbon content of brake disc material to 3.6-3.9% due to a special high carbonization process. The result: Better warping resistance because of increased thermal conductivity.

• Fitting Position: Rear Axle
• for PR number: 1KU
• Quantity per packing unit: 2
• Brake Disc Type: solid, Perforated
• Brake Disc Thickness [mm]: 12
• Number of Holes: 5
• Supplementary Article/Info 2: with bolts/screws
• Height [mm]: 48
• Centering Diameter [mm]: 65
• Outer Diameter [mm]: 282
• Surface: Coated
• Minimum thickness [mm]: 10.5
• Tightening Torque [Nm]: 120
• Manufacturer: BREMBO
• Name: BR 08.A202.1X
• Quality class: Q

General Information: The specific drilling of Brembo Xtra brake discs provides a brilliant and efficient performance in any braking condition, to emphasise the driving style of true enthusiasts.

• Fitting Position: Front Axle
• for PR number: 1LJ, 1ZD
• Brake Disc Type: internally vented
• Outer Diameter [mm]: 312
• Brake Disc Thickness [mm]: 25
• Height [mm]: 49.7
• Minimum thickness [mm]: 22
• Machining: High-carbon
• Surface: Coated
• Inner Diameter [mm]: 144
• Bolt Hole Circle Ø [mm]: 112
• Centering Diameter [mm]: 65
• Hole Arrangement/Number: 05/10
• Wheel Bolt Bore Diameter [mm]: 15.3
• Weight [kg]: 8.6
• Assy./disassy. by qualified personnel required!:
• Name: HE 8DD355127971
• Manufacturer: HELLA PAGID
